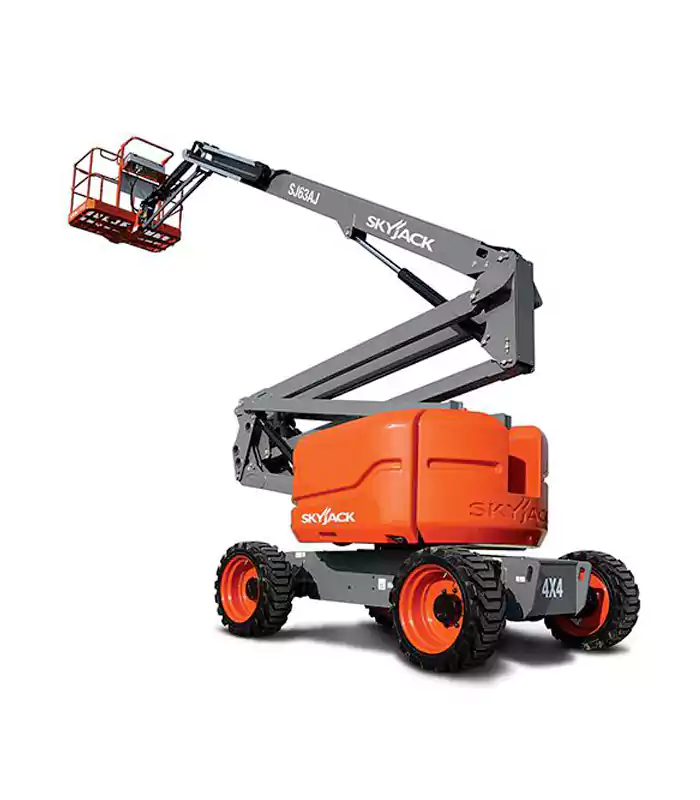

Articulated Boom Lift SJ63 AJ
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.
Skyjack’s SJ63/85 AJ features a boom geometry that allows the operator to lower the main fly boom to ground level to restock on material or supplies, then return to full height at the original working position – without lowering the riser section. It can be quickly executed and there is no need for machine repositioning or having to remember the sequence of operations to get back to the original working position – thus, improving productivity.
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity. We are the proud dealer of Skyjack articulating boom lifter in Bangladesh.
| Work Height | 69’ 7” (21.21 m) | |
| Platform Height | 63’ 7” (19.38 m) | |
| Up and Over Height | 27’ 6” (8.38 m) | |
| Platform Size | 36” x 96” (0.91 x 2.4 m) | |
| Stowed Width | 8’ (2.44 m) | |
| Tailswing | Zero | |
| Stowed Height | 8’ 4” (2.54 m) | |
| Transportation Height | 9′ 2″ (2.79 m) | |
| Stowed Length | 30’ (9.14 m) | |
| Ground Clearance | 13” (0.33 m) | |
| Wheelbase | 8’ (2.44 m) | |
| Rotation | 360° | |
| Platform Rotation | 170° | |
| Jib Length | 5’ 6” (1.68 m) | |
| Jib Range +/- | +65° / -60° | |
| Weight | 21,200 lbs (9,616 kg) | |
| Gradeability | 45% | |
| Turning Radius (Inside) | 7’ 3” (2.21 m) | |
| Turning Radius (Outside) | 17’ 5” (5.31 m) | |
| Axle Oscillation | 4” (10.16 cm) | |
| Drive Speed (Stowed) | 4.5 mph (7.3 km/h) | |
| Capacity | 500 lbs (227 kg) | |
| Horizontal Reach | 40’ (12.19 m) | |
| Local Floor Load (With Rated Load) | 167 psi (11.74 kg/sq cm) | |
| Overall Floor Load (With Rated Load) | 245 psf (1,196 kg/sq m) | |
| Maximum # of Persons | 2 | |
| Tire Type | Grip lug air-filled | |
| Tire Size | 14 x 17.5 | |
| Diesel Engine | 74 HP | |
| Dual Fuel Engine | 61 HP | |
| Fuel Tank | 30.4 gal. (115L) | |
| Hydraulic Reservoir | 30.4 gal. (115L) |
