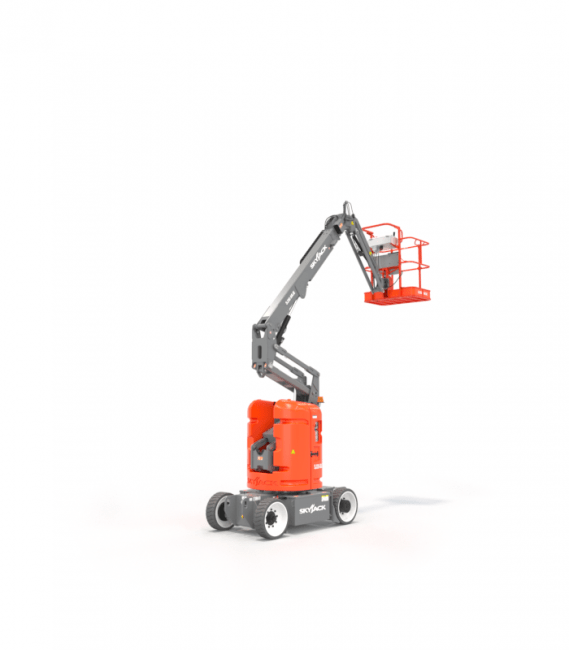

Articulated Boom Lift SJ30 AJE/ARJE
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.
Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tail swing make them ideal for maneuvering in confined areas. Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity. We are the proud dealer of Skyjack articulating boom lifter in Bangladesh.
| Work Height | 35’ 9” (10.90 m) | 35′ 6″ (10.82 m) |
| Platform Height | 29’ 9” (9.07 m) | 29′ 6″ (9.00 m) |
| Up and Over Height | 13′ 1″ (3.99 m) | 13′ 1″ (3.99 m) |
| Platform Size | 30″ x 46″ (0.76 x 1.17 m) | 30″ x 46″ (0.76 m x 1.17 m) |
| Stowed Width | 3′ 11″ (1.19 m) | 3′ 11″ (1.19 m) |
| Tailswing | 0 | 0 |
| Stowed Height | 6′ 6″ (1.98 m) | 6′ 6″ (1.98 m) |
| Transportation Height | 8′ 3″ (2.51 m) | 8′ 2″ (2.50 m) |
| Stowed Length | 18’ 2″ (5.54 m) | 18′ 1″ (5.51 m) |
| Transportation Length | 3,99 m | 3.80 m |
| Ground Clearance | 4″ (10.16 cm) | 4″ (10.16 cm) |
| Wheelbase | 5′ 5″ (1.65 m) | 5′ 5″ (1.65 m) |
| Rotation | 355° NC | 355° NC |
| Platform Rotation | 180° | 180° |
| Jib Length | 4′ 1” (1.25 m) | 4′ 1” (1.25 m) |
| Jib Range +/- | 142° (+77°/-65°) | 142° (+77°/-65°) |
| Weight | 12,320 lbs (5,588 kg) | 12,320 lbs (5,588 kg) |
| Gradeability | 35% (Counterweight Facing Up) | 35% (Counterweight Facing Up) |
| Turning Radius (Inside) | 5′ (1.52 m) | 5′ (1.52 m) |
| Turning Radius (Outside) | 10′ 7” (3.23 m) | 10′ 7” (3.23 m) |
| Drive Speed (Stowed) | 3.0 mph (4.8 km/h) | 3.0 mph (4.8 km/h) |
| Drive Speed (Raised) | 0.4 mph (0.64 km/h) | 0.4 mph (0.64 km/h) |
| Capacity | 500 lbs (227 kg) | 500 lbs (227 kg) |
| Horizontal Reach | 20′ 6″ (6.25 m) | 20′ 7″ (6.26 m) |
| Local Floor Load (With Rated Load) | 218 psi (15.33 kg/sq cm) | 218 psi (15.33 kg/sq cm) |
| Overall Floor Load (With Rated Load) | 451 psf (2,202.59 kg/sq m) | 451 psf (2,202.59 kg/sq m) |
| Maximum # of Persons | 2/1 (indoors/outdoors) | 2/1 (indoors/outdoors) |
| Wind Rating | 28 mph (12.5 m/s) | 28 mph (12.5 m/s) |
| Tire Type | Solid, N/M | Solid, N/M |
| Tire Size | 22 x 7 x 12 | 22 x 7 x 12 |
