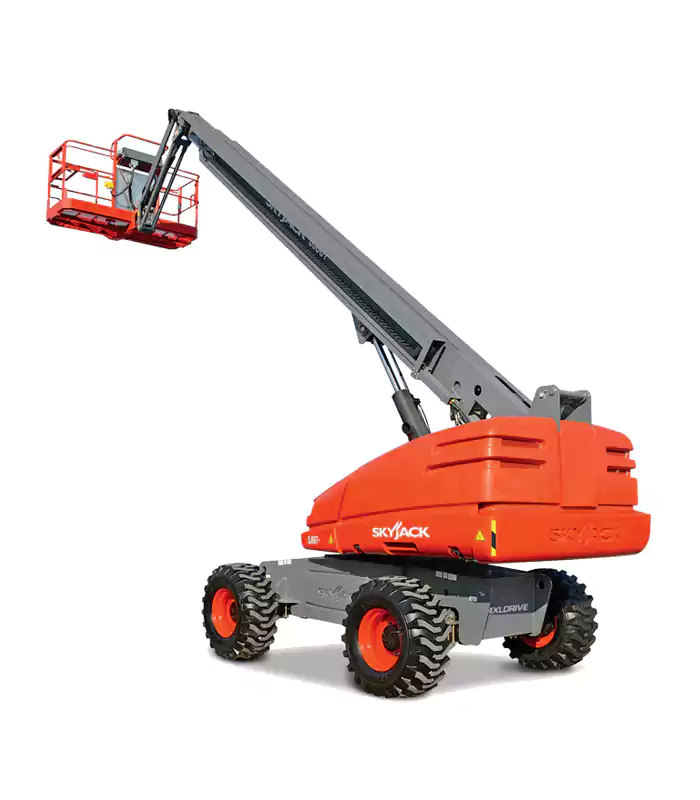

Telescopic Boom Lift SJ61/66 T+
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity.
Skyjack telescopic booms are ideal when extended horizontal and vertical outreach are key for the job site. These offer precise positioning paired with high capacity platforms and industry-leading reach. This means the boom lift controls are always in the orientation of the operator regardless of position of turret over chassis. This reduces operator confusion by eliminating the need for color coded arrows to determine drive versus joystick direction. A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity. We are the proud dealer of Skyjack telescope boom lift in Bangladesh.
| Work Height | 67’ 8” (20.62 m) | 72’ 3″ (22.02 m) |
| Platform Height | 61’ 8” (18.80 m) | 66’ 3″ (20.19 m) |
| Platform Size | 36” x 96” (0.91 x 2.44 m) | 36” x 96” (0.91 x 2.44 m) |
| Stowed Width | 8′ (2.44 m) | 8′ (2.44 m) |
| Tailswing | 4′ 4″ (1.33 m) | 4′ 4” (1.33 m) |
| Stowed Height | 8′ 6” (2.59 m) | 8′ 6” (2.59 m) |
| Transportation Height | – | 10′ 10” (3.30 m) |
| Stowed Length | 30’ 3.75” (9.24 m) | 34′ 1.5” (10.40 m) |
| Transportation Length | – | 26′ 8” (8.13 m) |
| Ground Clearance | 14.25” (0.36 m) | 14.25” (0.36 m) |
| Wheelbase | 8′ (2.44 m) | 8′ (2.44 m) |
| Rotation | 360° Continuous | 360° Continuous |
| Platform Rotation | 170° | 170° |
| Jib Length | – | 5’ (1.52 m) |
| Jib Range +/- | – | +65° / -60° |
| Weight | 25,050 lbs (11,365 kg) | 27,745 lbs (12,585 kg) |
| Gradeability | 50% | 50% |
| Turning Radius (Inside) | 6′ 4″ (1.93 m) | 6′ 4″ (1.93 m) |
| Turning Radius (Outside) | 16′ 7″ (5.05 m) | 16′ 7″ (5.05 m) |
| Axle Oscillation | 3.5” (8.89 cm) | 3.5” (8.89 cm) |
| Drive Speed (High speed) | 4.5 mph (7.2 km/h) | 4.5 mph (7.2 km/h) |
| Capacity | 660 / 1000 lbs (300 / 454 kg) | 660 / 1000 lbs (300 / 454 kg) |
| Horizontal Reach | 51’ 3” (15.62 m) | 57’ 0.25″ (17.38 m) |
| Maximum # of Persons | 2 / 3 | 2 / 3 |
| Wind Rating | 28 mph (12.5 m/s) | 28 mph (12.5 m/s) |
| Tire Type | Foam-Filled | Foam-Filled |
| Tire Size | 15 x 19.5 | 15 x 19.5 |
| Diesel Engine | Deutz TD2.9L – 74 HP (55 KW) | Deutz TD2.9L – 74 HP (55 KW) |
| Dual Fuel Engine | Kubota WG2503 – 61 HP (45 KW) | Kubota WG2503 – 61 HP (45 KW) |
| Fuel Tank | 45 gal. (170 L) | 45 gal. (170 L) |
| Hydraulic Reservoir | 60 gal. (227 L) | 60 gal. (227 L) |
