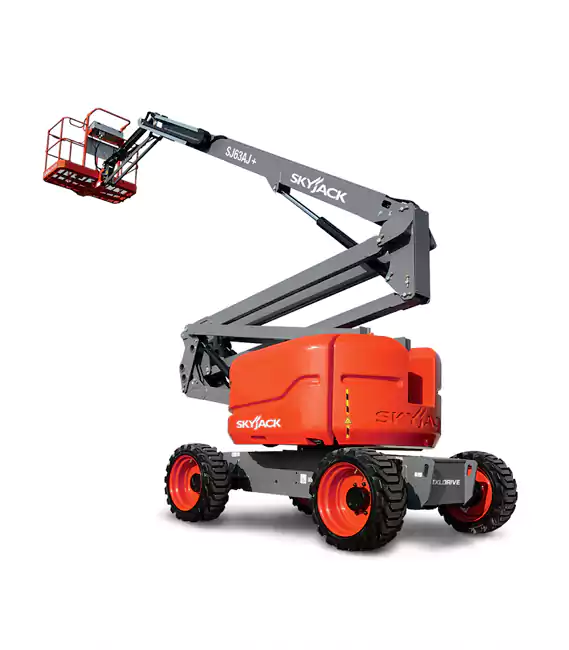

Articulated Boom Lift SJ63 AJ+
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.
Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tail swing make them ideal for maneuvering in confined areas. Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity. We are the proud dealer of Skyjack articulating boom lifter in Bangladesh.
| Work Height | 69’ 3” (21.11 m) | |
| Platform Height | 63’ 3” (19.28 m) | |
| Up and Over Height | 27’ 6” (8.38 m) | |
| Platform Size | 36” x 96” (0.91 x 2.44 m) | |
| Stowed Width | 8’ (2.44 m) | |
| Tailswing | 0 | |
| Stowed Height | 8’ 4” (2.54 m) | |
| Transportation Height | 9’ 2” (2.79 m) | |
| Stowed Length | 30’ (9.14 m) | |
| Transportation Length | 25’ 5” (7.75 m) | |
| Ground Clearance | 13” (0.33 m) | |
| Wheelbase | 8’ (2.44 m) | |
| Rotation | 360° Continuous | |
| Platform Rotation | 170° | |
| Jib Length | 5’ (1.52 m) | |
| Jib Range +/- | +65° / -60° | |
| Weight | 22,560 lbs (10,235 kg) | |
| Gradeability | 45% | |
| Turning Radius (Inside) | 7’ 3” (2.21 m) | |
| Turning Radius (Outside) | 17’ 5” (5.31 m) | |
| Axle Oscillation | 4” (10.16 m) | |
| Drive Speed (High speed) | 4.5 mph (7.2 km/h) | |
| Capacity | 660 / 1,000 lbs (300 / 454 kg) | |
| Horizontal Reach | 39’ 9” (12.12 m) | |
| Maximum # of Persons | 2 / 3 | |
| Wind Rating | 28 mph (12.5 m/s) | |
| Tire Type | Foam-Filled | |
| Tire Size | 14 x 17.5 | |
| Diesel Engine | Deutz TD2.9L – 74 HP (55 KW) | |
| Dual Fuel Engine | Kubota WG2503 – 61 HP (45 KW) | |
| Fuel Tank | 30.4 gal. (115L) | |
| Hydraulic Reservoir | 30.4 gal. (115L) |
