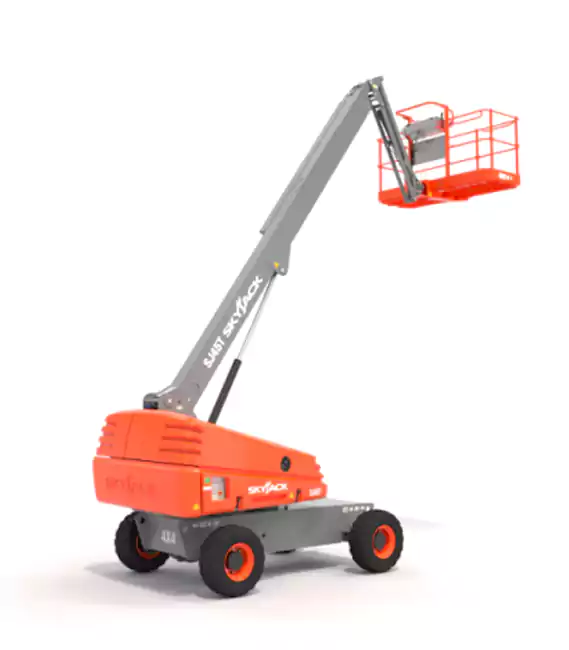

Telescopic Boom Lift SJ40/45 T
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity.
Skyjack telescopic booms are ideal when extended horizontal and vertical outreach are key for the job site. These offer precise positioning paired with high capacity platforms and industry-leading reach. This means the boom lift controls are always in the orientation of the operator regardless of position of turret over chassis. This reduces operator confusion by eliminating the need for colour coded arrows to determine drive versus joystick direction. A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity. We are the proud dealer of Skyjack telescope boom lift in Bangladesh.
| Work Height | 46’ 7” (14.20 m) | 51’ 2” (15.60 m) |
| Platform Height | 40’ 7” (12.37 m) | 45’ 2” (13.77 m) |
| Platform Size | 36” x 96” (0.91 x 2.44 m) | 36” x 96” (0.91 x 2.44 m) |
| Stowed Width | 7′ 6″ (2.29 m) | 7′ 6” (2.29 m) |
| Tailswing | 3′ 1” (0.94 m) | 3′ 1″ (0.94 m) |
| Stowed Height | 7′ 10” (2.39 m) | 7′ 10” (2.39 m) |
| Transportation Height | 9′ 7″ (2.92 m) | |
| Stowed Length | 25’ 5” (7.74 m) | 28’ 10” (8.79 m) |
| Transportation Length | 6.99 m | |
| Ground Clearance | 11” (0.28 m) | 11” (0.28 m) |
| Wheelbase | 8′ (2.44 m) | 8′ (2.44 m) |
| Rotation | 360° Continuous | 360° Continuous |
| Platform Rotation | 170° | 170° |
| Jib Length | – | 5’ (1.5 m) |
| Jib Range +/- | – | +65° / -60° |
| Weight | 13,960 lbs (6,332 kg) | 14,830 lbs (6,727 kg) |
| Gradeability | 50% | 50% |
| Turning Radius (Inside) | 7′ (2.13 m) | 7′ (2.13 m) |
| Turning Radius (Outside) | 16′ 6″ (5.03 m) | 16′ 6″ (5.03 m) |
| Axle Oscillation | 5” (12.70 cm) | |
| Drive Speed (Stowed) | 4.5 mph (7.2 km/h) | 4.5 mph (7.2 km/h) |
| Capacity | 650 lbs (295 kg) | 500 lbs (227 kg) |
| Horizontal Reach | 34’ (10.36 m) | 39’ 9” (12.12 m) |
| Local Floor Load (With Rated Load) | 130 psi (9.14 kg/sq cm) | 135 psi (9.49 kg/sq cm) |
| Overall Floor Load (With Rated Load) | 193 psf (942 kg/sq m) | 200 psf (977 kg/sq m) |
| Maximum # of Persons | 2 | 2 |
| Tire Type | Air Filled | Air Filled |
| Tire Size | 12 x 16.5 | 12 x 16.5 |
| Diesel Engine | 48 HP | 48 HP |
| Dual Fuel Engine | 82 HP | 61 HP |
| Fuel Tank | 45 gallon (170 L) | 45 gallon (170 L) |
| Hydraulic Reservoir | 59 gallon (223 L) | 59 gallon (223 L) |
