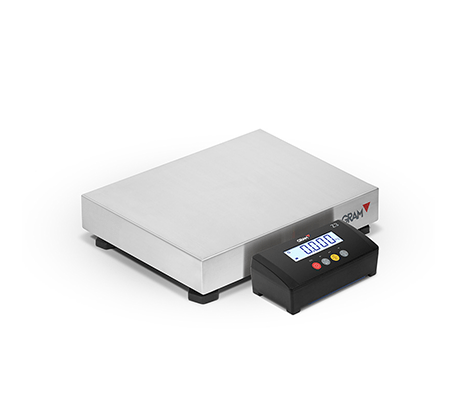

Z3T Series Platform Scale
Characteristics
Double position: Electronica indicator in two positions. Security: Blocked Keyboard for avoiding function modifications. 1.Flash Memory: Keep the last weighing on screen. 2.GLP-GMP: Function date hour and ticket number (optional RS232C). 3.Wireless: Suitable with printers and wireless remote display without cable. 4.USB Direct: Data sending to PC without software (optional). 5.Double tare: Normal and permanent.
Functions
Autohold: Displays the weight when the load to be weighed has been removed. Cloning: Copies the configuration from one equipment to another via scanner. Print data: of date time and ticket (with option RS-232C). Compatible: With automatic paper cutting printers. 1.Digital calibration: For adjustment without weights. 2.Configuration: Adjustment of gravity area at the start. 3.Tare: Normal and fixed with quick change. 4.Zero memory: For permanent loads. 5.Keyboard lock: Prevents advanced use.
| MODEL | Â Z3TF0-6 | Â Z3TF0-15 | Â Z3TF0-30 | Â Z3TF1-15 | Â Z3TF1-30 | Â Z3TF1-60 | Â Z3TF1-150 | Â Z3TF2-30 | Â Z3TF2-60 | Â Z3TF2-150 |
| Capacity (kg) | 6 | 15 | 30 | 15 | 30 | 60 | 150 | 30 | 60 | 150 |
| Readability (g) | 1 | 2 | 5 | 2 | 5 | 10 | 20 | 5 | 10 | 20 |
| Weighing units | g (kg) lb oz | |||||||||
| Display | LCD / 5 digits 25 mm (height digits) | |||||||||
| Acoustic warn | Yes | |||||||||
| Connectivity | RS 232-C Wireless (optional) | |||||||||
| Speed Transmission | 9.600 / 19.200 / 38.400 / 57.600 bauds | |||||||||
| Bits number and y equality | 8 bits inequality 1 bit stop | |||||||||
| Supply | Adaptation 230 V / 50 Hz (Euro) 75 V 1A | |||||||||
| Battery | 6V-1.2Ah – 30 / 60 hours operation time | |||||||||
| Work Temperature | +5 ºC / +35 ºC | |||||||||
| External dim platform (mm) | 300 x 240 x 102 | 400 x 300 x 102 | 500 x 400 x 122 | |||||||
| External dim pos. 1 (mm) | 420 x 240 x 102 | 515 x 300 x 102 | 870 x 600 x 800 | |||||||
| External dim pos. 2 (mm) | 300 x 355 x 102 | 400 x 414 x 102 | 800 x 675 x 800 | |||||||
| Nett weight total (kg) | 55 | 65 | 325 | |||||||
| ACCESSORIES | ||||||||||
| Support Table for F1 Platform | ||||||||||
| Support Table for F2 platform | ||||||||||
| Wheels set for platform or Table | ||||||||||
| Repeater Indicator RD3 (RS-232) | ||||||||||
| Repeater Indicator RD3W (Wireless) | ||||||||||
| PR4 Printer (RS-232) | ||||||||||
| PR4W Printer (Wireless) | ||||||||||
| PR6 Printer (RS-232) | ||||||||||
| PR6W Printer (Wireless) | ||||||||||
| Virtual Key Software for PC | ||||||||||
| USB Direct Z Cable | ||||||||||
| RS-232 Cable to RD3 or PC Z 15 m | ||||||||||
| RS-232 Cable to RD3 or PC Z 4 m | ||||||||||
| RS-232 Cable for Printer Z | ||||||||||
| OPTIONS | ||||||||||
| ISOCAL Certificate from 001 g to 30 kg | ||||||||||
| ISOCAL Certificate from 31 kg to 300 kg | ||||||||||
| RS-232 output | ||||||||||
| Wireless Z Connection | ||||||||||
