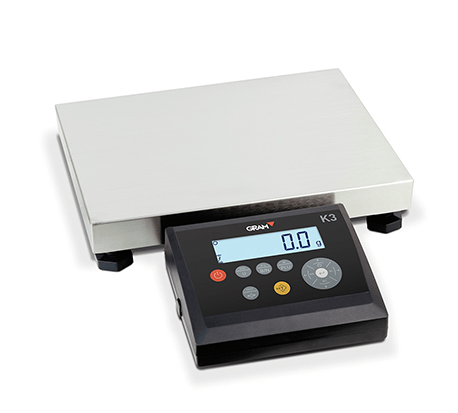

K3R Series Platform Scale
Caracteristics
1.Resistant ABS indicator with multi-positional internal structure 2.LCD display with bright automatic backlight 3.Removable indicator support with hooks to wind up the cable 4.Epoxy painted steel structure with stainless steel plate 5.Outer platform to weigh large objects available
Functions
4 auto-hold levels to weigh large-sized objects Checking function 1.Classification by weight 2.20 digital tares memory 3.100 products memory for piece counting function 4.Optional both PC or printer connection and remote display 5.Programmable auto-off
| MODEL | K3R-15KD SE | K3R-30KD SE |
| Capacity (kg) | 15 | 30 |
| Readability (g) | 05 | 1 |
| Reproducibility (g) | 15 | 3 |
| Warm up time | 1 hour | |
| Responding time | 2 seconds | |
| Calibration weight (external calibration models) | To select | |
| Available quantities to enter the sample for piece counting | 10 25 50 or 100 depending on the choice | |
| Weight units | g (kg) lb oz / lb | |
| Interface | RS-232 | |
| Humidity | Max 99 % | |
| Watertigh protection | IP-65 | |
| Indicator material | ABS external structure | |
| Structure material | Highly resistant epoxy painted steel | |
| Platform material | Stainless steel | |
| Indicator dimensions (mm) | 220 x 180 x 83 | |
| Platform dimensions (mm) | 400 x 300 | |
| Product dimensions (mm) | 400 x 495 x 90 | |
| Weight (kg) | 74 | |
| AVAILABLE OPTIONS | ||
| Relay output | ||
| Double RS-232 output | ||
| External tare output | ||
| RD3 remote display with cable | ||
| RD3W wireless remote display | ||
| PR4 printer with cable | ||
| PR4W wireless printer | ||
| PR6 printer with cable | ||
| PR6W wireless printer | ||
| 3 LED lights column | ||
| Software Virtual Key for PC | ||
| Direct USB cable | ||
| RS-232 cable for PC | ||
| RS-232 cable for printer | ||
