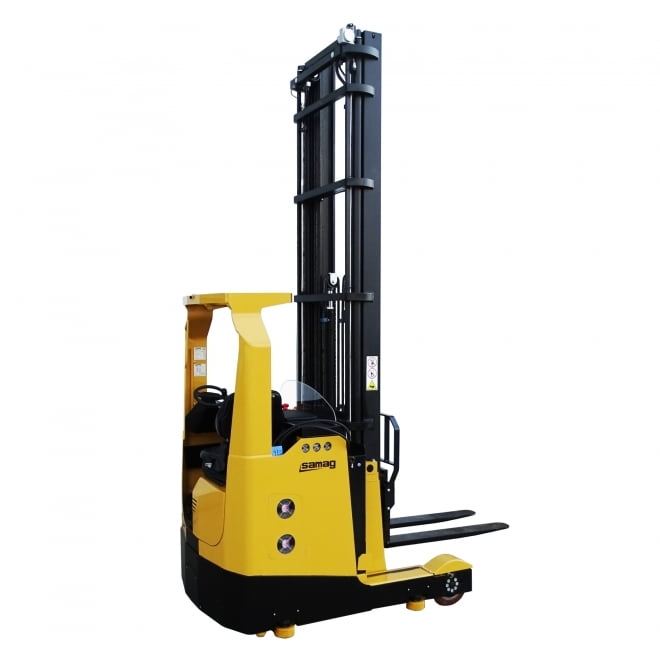

Reach Truck 1600kg
The total visibility lift trucks with retractable mast of Ergon series are irreplaceable for the rational use of space in warehouses and the optimization of goods handling times. They offer maximum comfort combined with the most modern AC technology, making work enjoyable thanks to their ease of man oeuvre and flexibility, with a driver seat designed to accommodate drivers of different heights.
SUPPLIED WITH THE MACHINE
- Button for slowed functions on lifting and side shift
- Electric parking brake
- Standard service brake:
- pedal-operated hydraulic brake on front wheels
- electric brake upon accelerator release and during reversal with energy recovery in both cases
- Program enabling the use of the machine, through 5 access passwords for the same number of operators, if activated
- Driving type battery 48V – 420 Ah up to 775 Ah (maximum amperage)
OPTIONAL
- Button for selection of direction of travel applied to the seat in addition to the standard one, useful in case of long distances
- Possibility of weighing the load in the free lift of the mast, in tons (tolerance + – 50 kg)
- DRIVE INÂ preset
- Cold store preset
- Preset for reverse buzzer, flasher, working lights
- Preset for level selector and fork height viewer
| Type | Stacker trucks | Class | Stacker trucks with retractable mast for normal-intensive use |
|---|---|---|---|
| Load capacity (Kg) | 1600 | Lifting capacity (mm) | 9500 |
