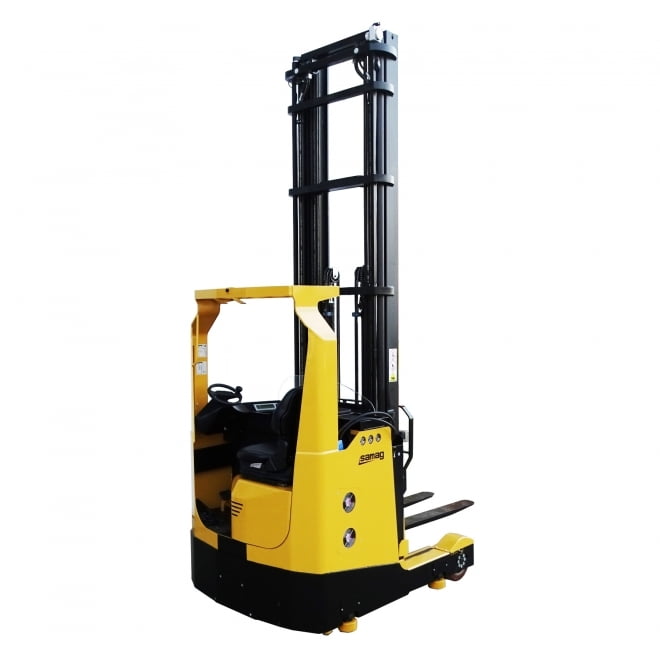

Reach Truck 1400kg

Electrically power-assisted steering system to ensure maximum driver comfort, with 360° rotation to reduce maneuvering space and reverse the direction of travel, or with 180° limit (optional); elimination of any impact transmission to the steering wheel in case of impact of the drive wheel against an obstacle. From the driving position, it is possible to safely access to the truck controls.

Triplex type 4-cylinder mast with total visibility and free lift as standard for maximum operator visibility during goods handling.

Tilting and integrated side shift on FEM plate for maximum load stability.

Mast retraction carriage with shoulder and rolling mechanisms, both adjustable, sliding on hardened steel tracks, resistant to wear, easy to replace and reversible.

SUPPLIED WITH THE MACHINE

• Button for slowed functions on lifting and side shift
• Electric parking brake
• Standard service brake:
  • pedal-operated hydraulic brake on front wheels
  • electric brake upon accelerator release and during reversal with energy recovery in both cases
• Program enabling the use of the machine, through 5 access passwords for the same number of operators, if activated
• Driving type battery 48V – 420 Ah up to 775 Ah (maximum amperage)

OPTIONAL

• Button for selection of direction of travel applied to the seat in addition to the standard one, useful in case of long distances
• Possibility of weighing the load in the free lift of the mast, in tons (tolerance + – 50 kg)
• DRIVE IN preset
• Cold store preset
• Preset for reverse buzzer, flasher, working lights
• Preset for level selector and fork height viewer
