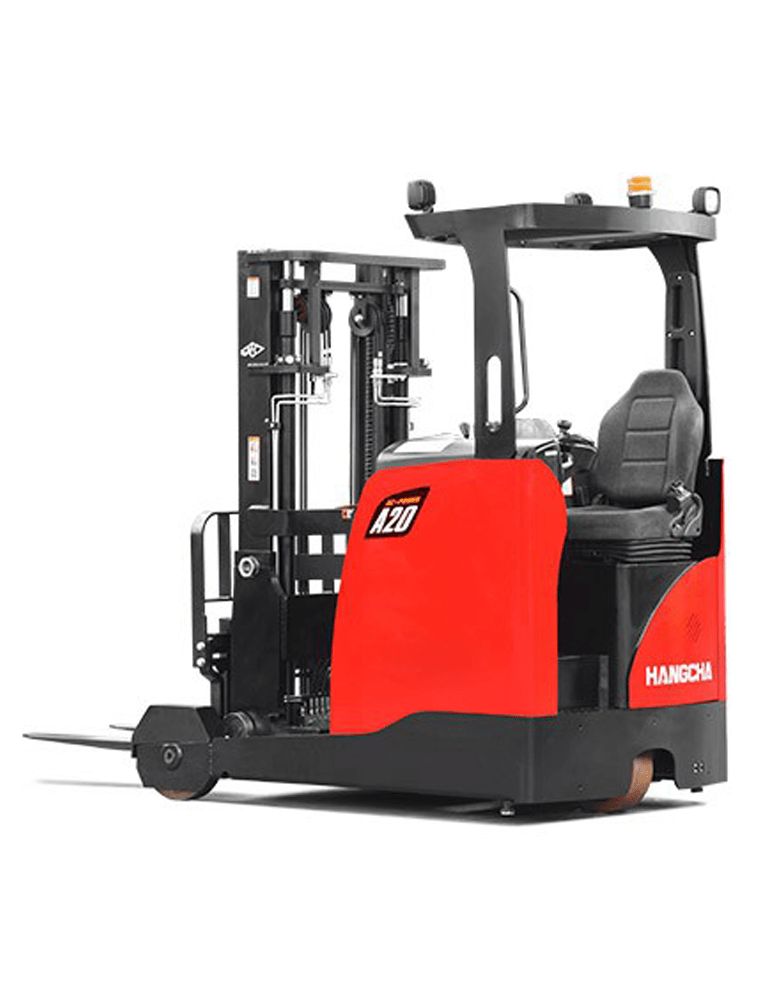

A series Reach Truck

High frequency MOSFET controller provides accurate control of travelling, lifting with better adjustable performance, motor and battery match each other better. Three braking are applied with regenerative braking, reverse current braking, parking brake and auto speed control on gradient. It is more energy saving and effectively. Integrated battery indicator、hour meter and self-diagnostic instrument.

Innovative, reliable CATL lithium iron-phosphate power is a perfect substitute for lead-acid batteries, it features rapid charging and opportunity charging ensure continuous availability of vehicles.

COMFORT

Ergonomically designed joystick, can control the truck travel forward or backward easily.

The drive can choose two operation mode, standing or seated.

Electric Power Steering (EPS) is standard specification, which provides flexible operation.

Low noise, no exhaust emission, low energy consumption, are all environment friendly.

SERVICEABILITY

Full opened hood, easy accessibility of all components, is easy for service.

The battery box can be easily pull out when the mast reach forward, it’s easy for maintain.

RELIABILITY

All the key parts such as waterproof connectors, electromagnetic brake and emergency switch adopt the famous brand, greatly improve the reliability of the electric system.

There is overloading protection for electronics and hydraulic system.

The truck can’t be operated unless the driver press the pedal（Operator presence pedal） which equipped with switch, the feature greatly improves safety and reliability.

OPTIONS
  • 2.7-5.0m duplex mast, built-in sideshifter, fork tilting
  • 4.3-12.5m full-free triplex mast built-in side shifter, fork tilting
  • Various fork lengths
  • Imported high-performance battery
  • Optional large capacity battery 420Ah, 560Ah
  • Full automatic high-frequency charger
  • Other attachments
  • Larger load backrest
  • Load and drive wheels use the Vulkollan material
  • Height monitoring system
  • Lifting height limitation system
  • Alarm lamp, rear headlamp or other lamps
  • Reverse buzzer
  • Electrical buer for forward and backward movements
  • Adjustable seat with OPS switch
  • 360-degree steering mode
  • CE safety requirements
