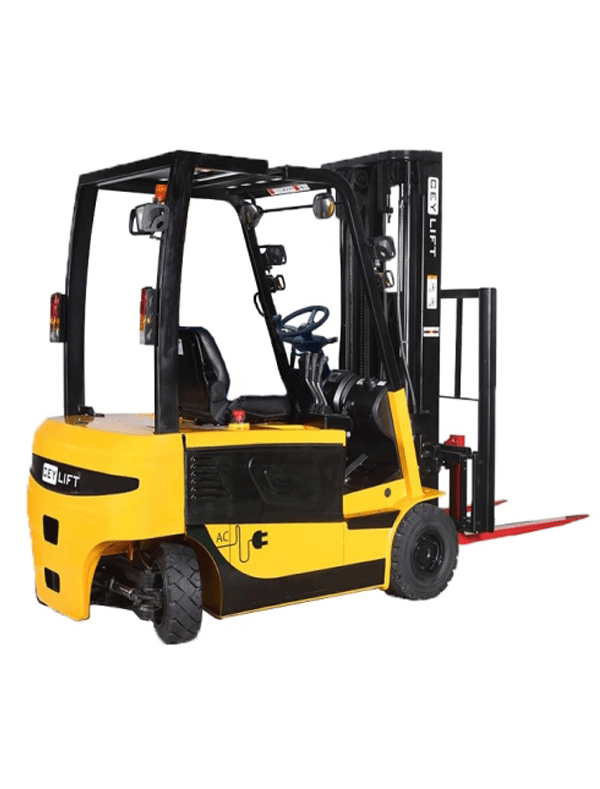

European Electric Forklift 3.5 Ton
Ceylift Forklifts, whose power comes from domestic produced diesel engines, stands out with its superior performance and low emission emissions. In addition to its performance, the design offers comfortable and safe working capability for operators with its wide range of view.
Product Design Type CY35D
Driving Diesel Diesel Diesel
Control Type: Manual, Pedestrian, Standing, Sofa, Sitting Sitting Sitting
Load Capacity / Nominal Load Q kg 3500
Load Center Distance c mm 500
Load Distance from Fork Surface to Front Axle Center X mm 490
Wheelbase Y mm 1750
- Definition
- Tilting Angle Degrees 6/12
Closed Position Elevator Height h1 mm 2175
Free Lift h2 mm 155
Lift Height H3 mm 3300
Elevator Height in Open Position h4 mm 4460
Protector Height h5 mm 2180
Length (Including Fork) L1 mm 3880
Length (to Fork Surface) L2 mm 2810
Forklift Width b1 mm 1280 1
Fork Dimensions s / e / l mm 40/122/1070
Fork Carrier ISO 2328, Class / Type A, B 2A 3A 3A
Fork Carrier Width B2 mm 1070
Height from Ground, Under Elevator M1 mm 135
Height from Ground, Under Chassis M2 mm 195
Working Range 1,000 X 1,200 Palette Ast mm 4090
Turning Radius Wa mm 2400
- weights
- Lifting Speed, Loaded / Unloaded Km / h 19/20
Lowering Speed, Loaded / Unloaded Mm / s 490/530
Lowering Speed, Loaded / Unloaded Mm / s 420/500
Climbing Ability 25%
Service brake, Operation / Control Foot / Hydraulic Foot
Parking Brake, Operation / Control Hand / Mechanical
Steering Type Hydraulic
Battery, Voltage / Capacity V / ah 12/90
Model TUMOSAN 3d 29 IG
Nominal Output SAE Net HP / Kw 55/40
Nominal Speed ​​Min-1 2500
Max. Torque SAE Net Nm @ min-1 196
- Wheels – Chassis
- Elevator Type
Closed lift height (mm)
Max Fork height (mm)
Free Lift (mm)
Tilting angle (degrees)
Load Capacity Without lateral displacement
At 500 mm Load Center (kg)
Load Capacity with Lateral Shift
At 500 mm Load Center (kg)
Single Rubber Double Tire Single Tire Double Tire
25 / 30D / 35D 25/30 / 35D 25 / 30D / 35D 25 / 30D / 35DÂ without ProtectorNext Back 25D 30D 35D 25D 30D 35D 25D 30D 35D 25D 30D 35D
2 Stage Elevator
- Basic Dimensions
- Ride Control Type Automatic Transmission Fuel Tank Capacity L 75 Attachment Pressure Bar 180
