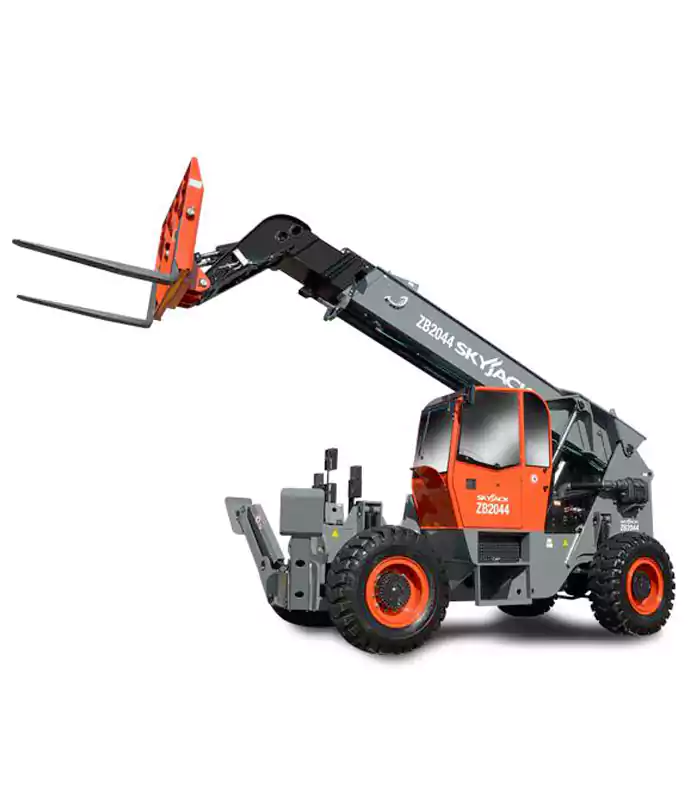

Telehandler ZB2044
In a class of its own, Skyjack’s ZB2044 is best described as robust, rugged, and reliable. The ZB2044 offers exceptional maneuverability making it the perfect jobsite substitute for heavy cranes and handlers. Similar to Skyjack’s TH Series, the ZB2044 offers proprietary features as well as the industry’s best life cycle value.
Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization. With a variety of proprietary features, Skyjack’s telehandlers feature an innovative cab design that allows fleet operators to easily convert between open and enclosed cabs with simple hand tools, providing increased flexibility for fleet movement and fast response to customer demands. Easily sourced flat glass panels with no custom curved profiles and a bolt-on/bolt-off window retention system ensures minimal downtime and incurred costs for repairing damaged glass in the field. An axle-based drive system with an operator controlled locking differential on the rear axle and limited slip differential on the front axle. This drive system has been proven as durable, low maintenance, and capable of navigating any job site terrain.
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity. We are the proud dealer of Skyjack telehandler in Bangladesh.
| Overall Width | 8’ 6” (2.59 m) | |
| Ground Clearance | 18” (46 cm) | |
| Turning Radius (Outside) | 18’ 4” (5.59 m) | |
| Fuel Tank | 48 gallon (185 L) | |
| Hydraulic Reservoir | 55 gallon (208 L) | |
| Maximum Lift Capacity | 20,000 lbs (9,072 kg) | |
| Maximum Lift Height | 44’ 10” (13.67 m) | |
| Maximum Forward Reach | 27’ 5” (8.36 m) | |
| Rated Lift Capacity @ Maximum Height | 10,000 lbs (4,536 kg) | |
| Rated Lift Capacity @ Maximum Reach | 4,000 lbs (1,814 kg) | |
| Rated Lift Capacity @ Maximum Height (on outriggers) | 12,000 lbs (5,443 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 7,000 lbs (3,175 kg) | |
| O/A Length – Less Forks | 20′ 3″ (6.17m) | |
| Overall Height – Stowed | 9’ (2.74 m) | |
| Operating Weight | 45,000 lbs (20,412 kg) | |
| Engine | 168hp Cummins QSB 4.5C T4F | |
| Max Travel Speed – Forward | 20.5 mph (33 kmh) | |
| Transmission | Dana powershift, 3 speed F/R | |
| Axles | Axletech steerable outboard planetary | |
| Service Brakes | 4 wheel disc | |
| Parking Brakes | Pinion mounted dry disc on front axle | |
| Steering | 3 mode (2 wheel, 4 wheel, crab) | |
| Tires | 17.5 x 25 16PR grip lug |
