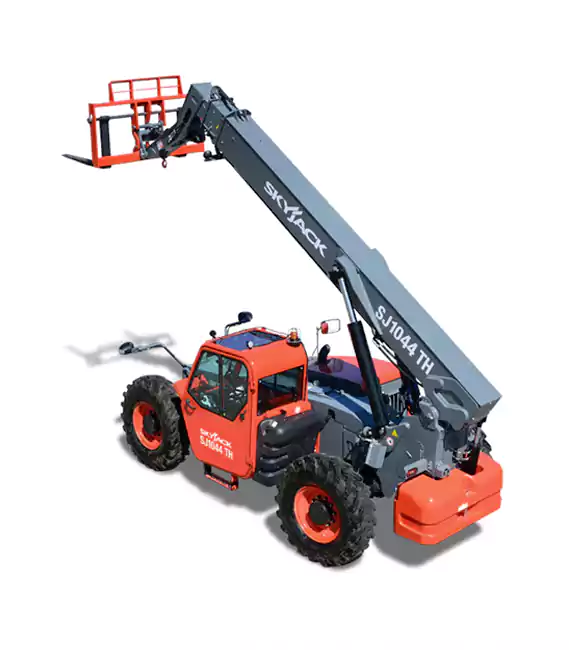

Telehandler SJ1044 TH
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity.
Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization. With a variety of proprietary features, Skyjack’s telehandlers feature an innovative cab design that allows fleet operators to easily convert between open and enclosed cabs with simple hand tools, providing increased flexibility for fleet movement and fast response to customer demands. Easily sourced flat glass panels with no custom curved profiles and a bolt-on/bolt-off window retention system ensures minimal downtime and incurred costs for repairing damaged glass in the field. An axle-based drive system with an operator controlled locking differential on the rear axle and limited slip differential on the front axle. This drive system has been proven as durable, low maintenance, and capable of navigating any job site terrain.
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of re positioning the operator needs to do in order to stay close to a building facade, improving productivity. We are the proud dealer of Skyjack telehandler in Bangladesh.
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.3 cm) | |
| Turning Radius (Outside) | 147” (3.73 m) | |
| Fuel Tank | 35 gallon (132 L) | |
| Hydraulic Reservoir | 43.85 gallon (166 L) | |
| Maximum Lift Capacity | 10,000 lbs (4,535 kg) | |
| Maximum Lift Height | 44’ 3” (13.49 m) | |
| Maximum Forward Reach | 29’ 6” (8.03 m) | |
| Rated Lift Capacity @ Maximum Height | 7,000 lbs (3,175 kg) | |
| Rated Lift Capacity @ Maximum Reach | 1,800 lbs (816 kg) | |
| O/A Length – Less Forks | 21’ 2” (6.45 m) | |
| Overall Height – Stowed | 8’ 1” (2.47 m) | |
| Operating Weight | 28,226 lbs (12,803 kg) | |
| Engine | 74hp / 287 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed – Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 20,000 lbs |
