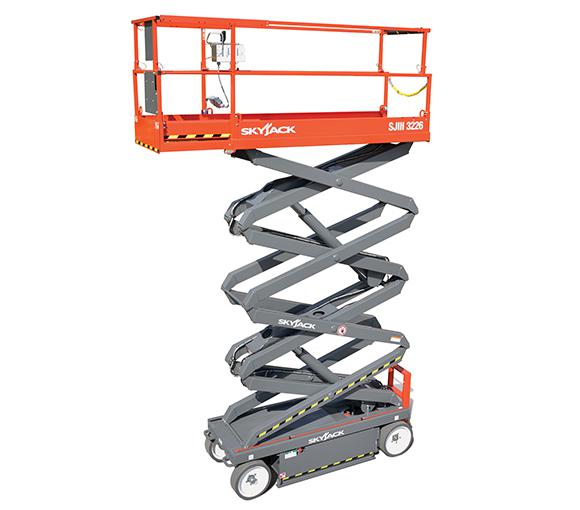

Skyjack Scissor Lift SJIII 3220/26
A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Skyjack scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.
| Work Height | 26’ (7.92 m) | 32’ (9.75 m) |
| Raised Platform Height | 20’ (6.10 m) | 26’ (7.92 m) |
| Lowered Platform Height | 38” (0.97 m) | 45” (1.14 m) |
| Overall Width | 32” (0.81 m) | 32” (0.81 m) |
| Overall Length | 91.5” (2.32 m) | 91.5” (2.32 m) |
| Stowed Height (Rails Up) | 77.5” (1.97 m) | 84.7” (2.15 m) |
| Stowed Height (Rails Down) | OPT 63.5” (1.61 m) | 70.6” (1.79 m) |
| Platform Width (Inside Dimension) | 28” (0.71 m) | 28” (0.71 m) |
| Platform Length (Inside Dimension) | 84” (2.13 m) | 84” (2.13 m) |
| Extension Deck (Roll Out) | 3’ (0.91 m) | 3’ (0.91 m) |
| Ground Clearance (Stowed) | 3.5” (8.89 cm) | 3.5” (8.89 cm) |
| Ground Clearance (raised) | 0.75” (1.90 cm) | 0.75” (1.90 cm) |
| Wheelbase | 69” (1.75 m) | 69” (1.75 m) |
| Weight | 3,510 lbs (1,592 kg) | 4,135 lbs (1,876 kg) |
| Gradeability | 30% | 30% |
| Turning Radius (Inside) | 50” (1.27 m) | 50” (1.27 m) |
| Turning Radius (Outside) | 108” (2.74 m) | 108” (2.74 m) |
| Lift Time (With Rated Load) | 33 sec | 56 sec |
| Lower Time (With Rated Load) | 29 sec | 42 sec |
| Drive Speed (Stowed) | 2 mph (3.2 km/h) | 2.4 mph (3.9 km/h) |
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) | 0.7 mph (1.1 km/h) |
| Maximum Drive Height | Full Height | Full Height |
| Capacity (Overall) | 900 lbs (408 kg) | 500 lbs (227 kg) |
| Distributed Capacity (Main Platform) | 600 lbs (272 kg) | 250 lbs (113 kg) |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) | 250 lbs (113 kg) |
| Local Floor Load (With Rated Load) | 130 psi (897 kPa) | 130 psi (897 kPa) |
| Overall Floor Load (With Rated Load) | 245 psf (12 kPa) | 235 psf (12 kPa) |
| Maximum # of Persons | 2 | 2 |
| Wind Rating | 28 mph (12.5 m/s) | 28 mph (12.5 m/s) |
| Tire Type | Solid, N/M | Solid, N/M |
| Tire Size | 16 x 5 x 12 | 16 x 5 x 12 |
