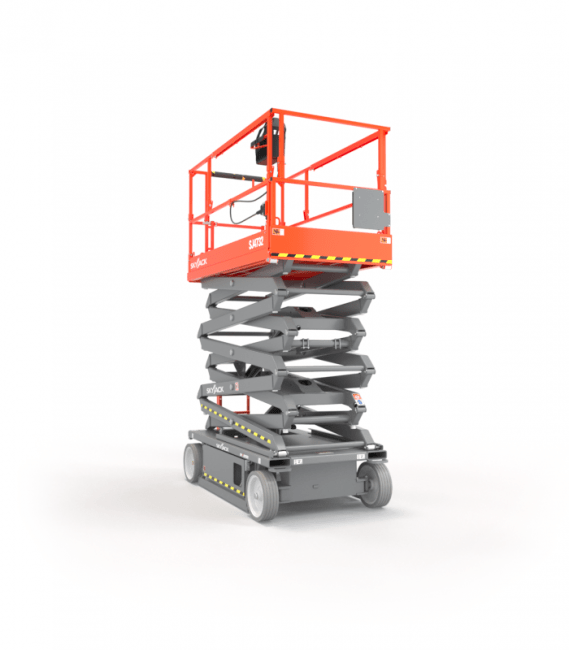

Electric Scissor Lift SJ4726/32
A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Skyjack scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.
| Work Height | 31’ 7” (9.63 m) | 37’ 7” (11.46 m) |
| Raised Platform Height | 25’ 7” (7.80 m) | 31’ 7” (9.63 m) |
| Lowered Platform Height | 46” (1.17 m) | 50” (1.27 m) |
| Overall Width | 47” (1.19 m) | 47” (1.19 m) |
| Overall Length | 91.6” (2.32 m) | 91.6” (2.32 m) |
| Stowed Height (Rails Up) | 90” (2.29 m) | 94” (2.39 m) |
| Stowed Height (Rails Down) | 75” (1.90 m) | 78.5” (1.99 m) |
| Platform Width (Inside Dimension) | 42” (1.07 m) | 42” (1.07 m) |
| Platform Length (Inside Dimension) | 83” (2.11 m) | 83” (2.11 m) |
| Extension Deck (Roll Out) | 4’ (1.22 m) | 4’ (1.22 m) |
| Wheelbase | 69” (1.75 m) | 69” (1.75 m) |
| Weight | 5,537 lbs (2,511 kg) | 5,496 lbs (2,492 kg) |
| Gradeability | 25% | 25% |
| Turning Radius (Inside) | 28” (0.71 m) | 28” (0.71 m) |
| Turning Radius (Outside) | 104” (2.64 m) | 104” (2.64 m) |
| Lift Time (With Rated Load) | 52 sec | 50 sec |
| Lower Time (With Rated Load) | 32 sec | 30 sec |
| Drive Speed (Stowed) | 2.0 mph (3.2 km/h) | 2.0 mph (3.2 km/h) |
| Drive Speed (Raised) | 0.6 mph (1.0 km/h) | 0.6 mph (1.0 km/h) |
| Maximum Drive Height | Full Height | Full Height |
| Capacity (Overall) | 1,000 lbs (454 kg) | 700 lbs (318 kg) |
| Distributed Capacity (Main Platform) | 700 lbs (318 kg) | 450 lbs (204 kg) |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) | 250 lbs (113 kg) |
| Local Floor Load (With Rated Load) | 131 psi (903 kPa) | 124 psi (856 kPa) |
| Overall Floor Load (With Rated Load) | 234 psf (1143 kg/ m2) | 222 psf (1083 kg/ m2) |
| Maximum # of Persons | 3 | 2 |
| Tire Type | Solid, N/M | Solid, N/M |
| Tire Size | 16 x 5 x 12 | 16 x 5 x 12 |
