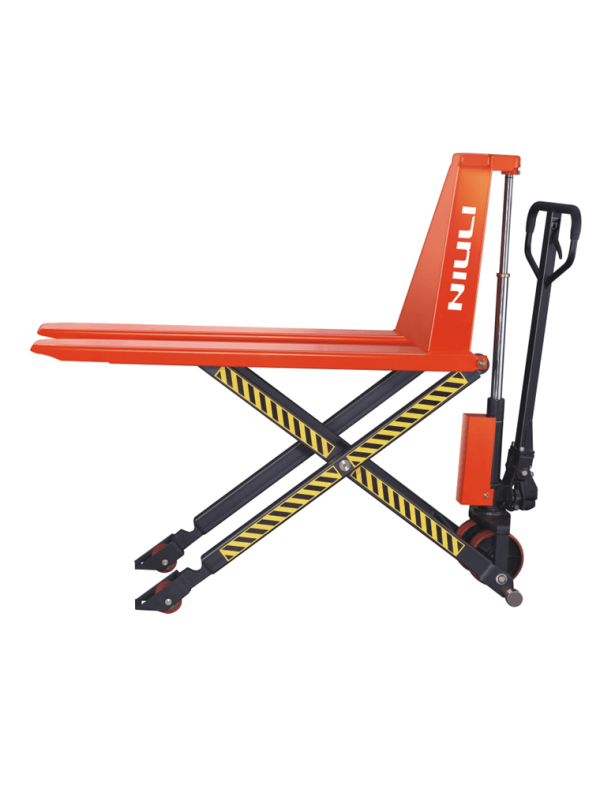

Scissor Manual Hydraulic Hand Pallet Truck
- Fast lifting (when carrying light cargo) —- The handle is shaken to reach 800mm about 18 times.
- Slow-descent control system can effectively prevent damage to vehicles and goods.
- The safety unloading system can effectively prevent the car from unloading automatically when overloaded, thereby protecting the car.
The scissor-type high-lift truck can be used for both transportation and work platforms. Its compact body design and fast lifting function of the oil pump can greatly save lifting time and improve labor efficiency. It is widely used in factories, workshops, In warehouses, supermarkets, and other places, the lifting range can be adapted to different handling heights, which reduces the trouble of bending over and handling goods.
| model | CBY-HL |
| Rated load (kg) | 1000/1500 |
| Fork width (mm) | 550/685 |
| Fork length (mm) | 1150/1120 |
| Low drop height (mm) | 85 |
| Lifting height (mm) | 800 |
| Steering wheel (mm) | Polyurethane |
| Front wheel (mm) | Polyurethane |
| Self weight (kg) | 125-135 |
