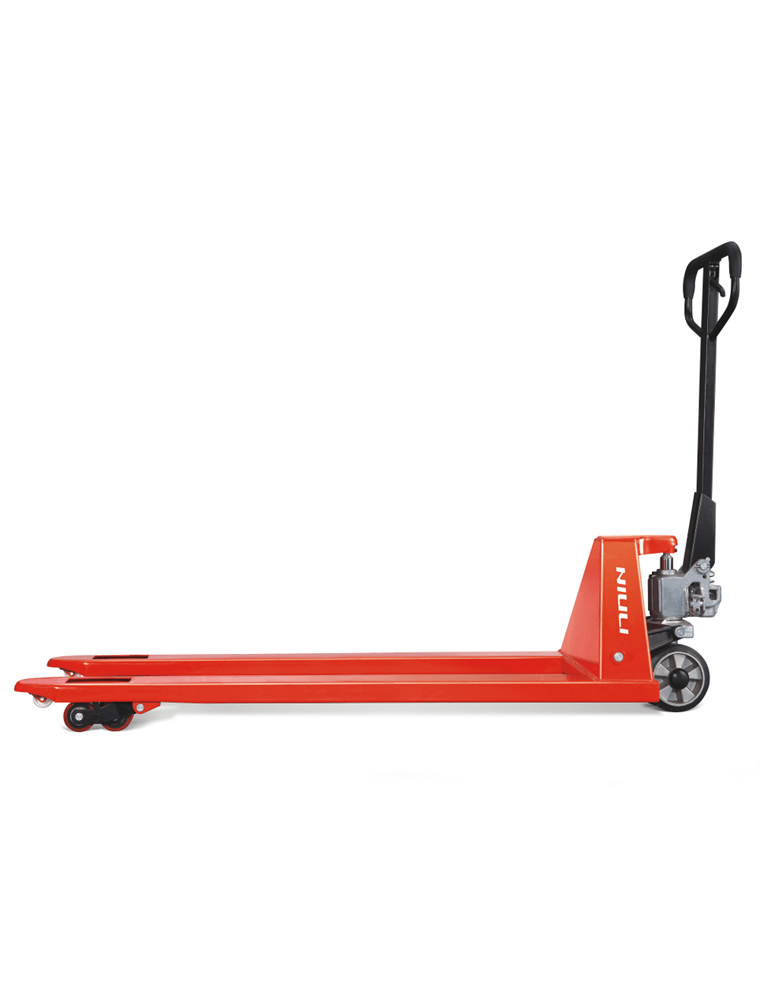

Extended Fork Hand Pallet
It is suitable for cargo handling with large volume or pallet. High-quality steel plate, carefully built; the internal relief valve provides overload protection to effectively avoid overloading and reduce maintenance costs. Integral cast wheel frame, equipped with double front wheels, strong bearing capacity, self-lubricating bearings ensure longer life of the truck.
SPECIFICATIONS
Model | LC2.0 / LC2.5 / LC3.0 |
Rated load (kg) | 2000/2500/3000 |
Lifting height (mm) | 195 |
Low drop height (mm) | 85 |
Steering wheel (mm) | φ180X50 |
Front wheel (mm) | φ80X70 |
Fork width (mm) | 1400-2500 |
Fork length (mm) | 550/685 |
Self weight (kg) | 102-175 |
