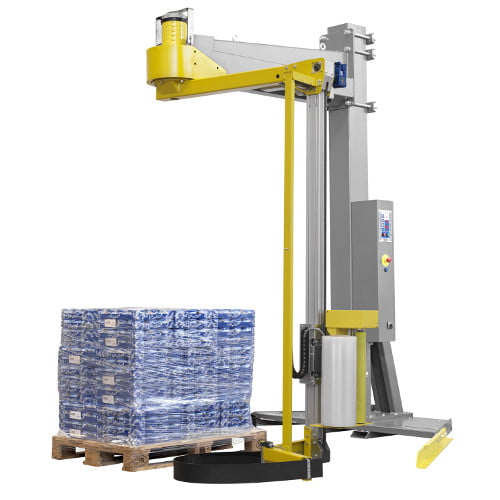

Lybra Auto Stretch Film Wrapping Machine
Automatic rotating arm stretch wrapper
Compact, high performance rotating arm machine for wrapping pallets with stretch film. Reliable,
robust construction. Equipped with electrical distributor and gears system for rotation of the arm.
Standard delivery with FE Magnetical brake system.
Easy to use, 99 pre-set wrapping cycles and the possibility of programming an unlimited number of options.
Electronically controlled pre-stretch carriage with rapid film loading system. (IRF SYSTEM).
| Technical Characteristics | |
|---|---|
| Total installed power | min 1.2 (kW) max 2.2 (kW) |
| Standard input voltage | 230V three-phase – 50 Hz – 6A |
| Pneumatic supply | 5-6 bar; 100NL per pallet |
| Electrical system and motors protection | IP 54 |
| Max pallet dimensions | 1000 x 1200 mm |
| Standard pallet height | 2500 mm |
| Maximum arm rotation speed | 12 rpm |
