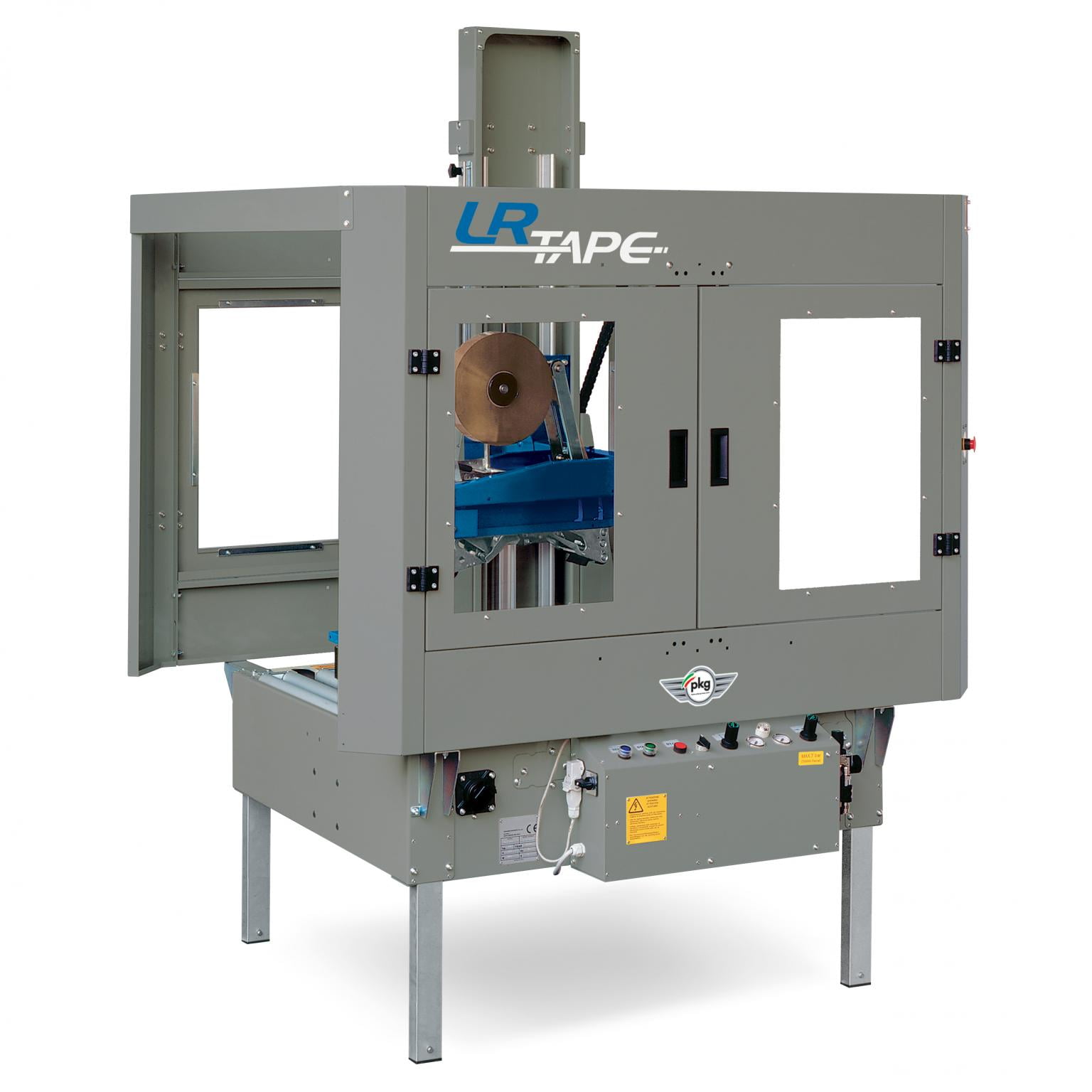

LR Taping Machine

LR Taping Machine

Automatic self-dimensioning cartonsealers with self-adhesive tape for top andbottom sealing of random American-typeboxes.

Description

Technical features

Power supply: Three-phase/Single-phase
Installed power: 0,23 Kw
Electrical protection: IP54
Average production: 300/500 boxes/hour
Box transfer speed: ~22m/min

Legenda dimensioni

	Tape LR 52		Tape LR 67		Tape LR 82		Tape LR-A 52		Tape LR-A 67
	min	MAX	min	MAX	min	MAX	min	MAX	min	MAX
L	200 mm	∞	200 mm	∞	200 mm	∞	200 mm	1000 mm	120 mm	67
W	100 mm	520 mm	100 mm	670 mm	100 mm	820 mm	100 mm	670 mm	120 mm	670 mm
H	100 mm	520 mm	120 mm	670 mm	120 mm	820 mm	120 mm	670 mm	120 mm	670 mm

Legenda dimensioni

	Tape Head
A	360 mm
B	25 – 50 – 75 mm
C	76 mm
S	25 – 38 – 50 – 75 mm
