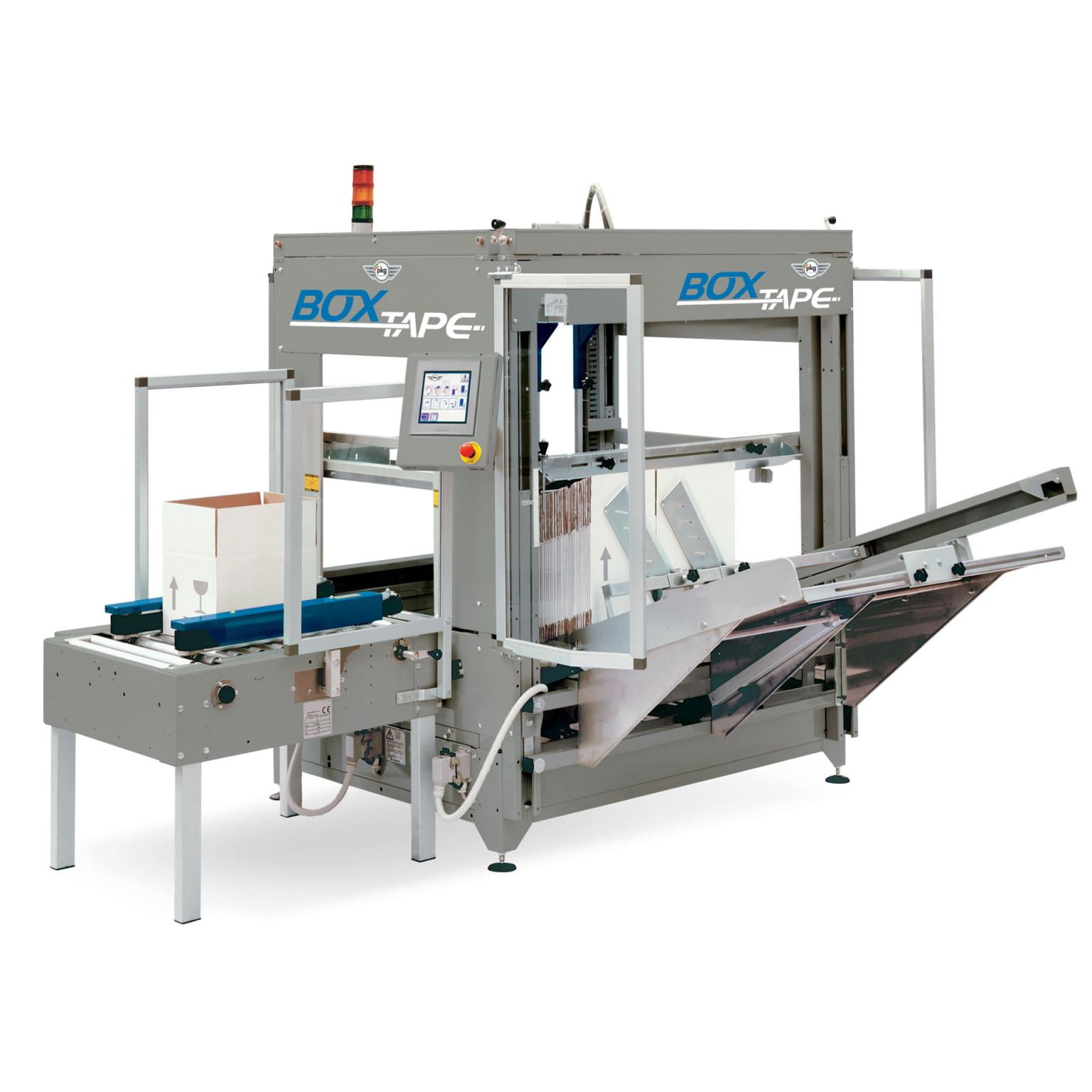

Box Taping Machine
Easy to use. Quick box format adjustment, takes the flat sheet of cardboard from the lateral magazine and after folding the four lower flaps, the box is taped and ready for filling. Compact machine suited for use in every environment.
Technical Features
- Machine structure in pressure-bent steel plate
- Electro-pneumatic drives
- Operation control with electronic logic and dedicated programmable microprocessor
- LCD display monitor
- Protections:
- Movable hinged panels with safety microswitches
- Dimensions of boxes to form
- L: 220 – 600 mm
- W: 100 – 500 mm
- H: 150 – 750 mm (with upper flap raised)
- Three-phase electric power supply: 400 V/ 50 Hz, 1kW
- Working temperature min +5°C – max +35°C
- Footprint 2100 x 1600 mm
- Weight: 490 kg / 1080 lb
- Compressed air supply 6 Bar, 13 nl per cycle
- Electric protection rating IP 54
- Work surface height 650 +100 mm
- Max noise levels 78 dB
| Tape Head | |
|---|---|
| A | 360 mm |
| B | 25 – 50 – 75 mm |
| C | 76 mm |
| S | 25 – 38 – 50 – 75 mm |
| BOX TAPE | ||
|---|---|---|
| min | MAX | |
| L | 220 mm | 600 mm |
| W | 100 mm | 500 mm |
| H | 150 mm | 500 mm |
| S | 25 mm | 75 mm |
