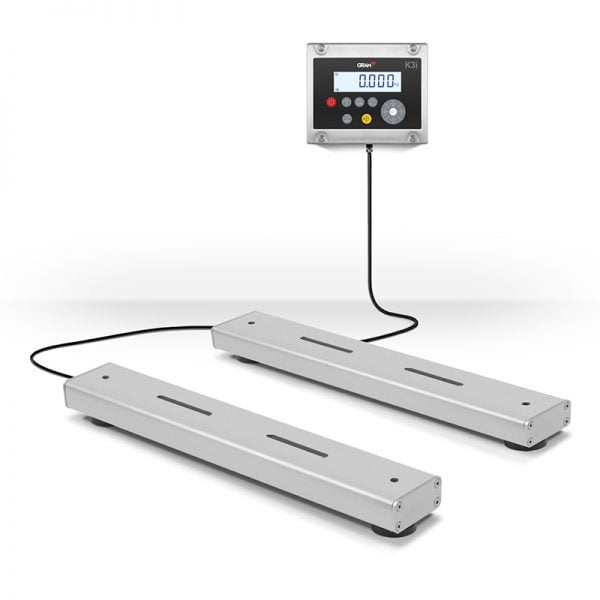

K3i Zebra Series Floor Scale
- To weigh very long objects easily.
- To weigh rigid structures, animal cages, with built-in top anchor.
- Made of stainless steel AISI 304 and AISI 316, for extreme use.
- Optional IP69K load sensors, resistant to cleaning with high pressure.
- Lateral openings for height adjustment or maintenance.
- Polished finish with pressure glass microspheres and protective varnish.
MODEL | K3i Zebra AI 304 8-3T | K3i Zebra AI 316 8-3T | K3i Zebra AI 304 12-3T | K3i Zebra AI 316 12-3T | ||||||||
Capacity (kg) | 1500 | |||||||||||
Resolution (g) | 500 | |||||||||||
Weighing units | g, kg, lb, oz | |||||||||||
Display | Backlit LCD | |||||||||||
Acoustic warning | Yes | |||||||||||
Connectivity | RS 232-C, Wireless (optional) | |||||||||||
Transmission speed | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 baud | |||||||||||
Bit number and parity | 8 Bits, no parity, 1 bit stop | |||||||||||
Feeding | 230 V / 50 Hz (Euro) 11 V AC | |||||||||||
Battery | 6V-5AH; Service time 25/60 hours depending on use | |||||||||||
Work temperature | + 5ºC / + 35ºC | |||||||||||
Sheet thickness | 5 mm | |||||||||||
Structure | AISI 304 stainless steel | AISI 316 stainless steel | AISI 304 stainless steel | AISI 316 stainless steel | ||||||||
Load cells | 4 stainless cells | |||||||||||
Platform Dim (mm) | 130 x 800 | 150 x 1200 | ||||||||||
Minimun height | 105 | 105 | ||||||||||
Maximum height | 115 | 115 | ||||||||||
Net weight platform (kg) | 12 x 2u. | 25 x 2u. | ||||||||||
Packaging Dim (mm) | 820 x 280 x 135 | 1220 x 320 x 135 | ||||||||||
Total weight with packaging (kg) | 25 | 52 |
