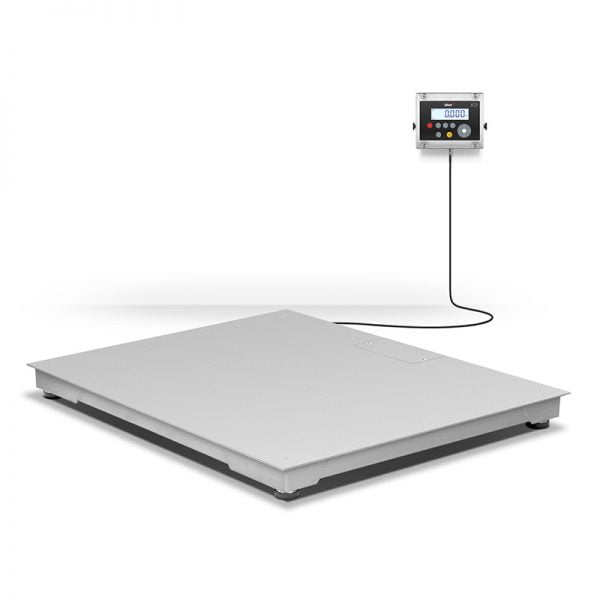

K3i XIC Series Floor Scale

K3i XIC Series Floor Scale

  • Heavy duty heavy duty platform, for harsh environments.
  • With stainless steel sensors, with IP-67 protection and IP-69K option.
  • Polished finish with pressure glass microspheres.
  • Corrosion resistant, versions in AISI 304 and AISI 316 for extreme conditions.
  • Electronic indicator classifier by color change of the indication (3 colors).
  • Optional printers and labeller with printing of customer and product data.
MODELK3i XIC -1210-1,5TK3i XIC -1210-3TK3i XIC -1212-1,5TK3i XIC -1212-3TK3i XIC -1512-1,5TK3i XIC -1512-3TK3i XIC -1515-1,5TK3i XIC -1515-3TK3i XIC -1210-1,5TK3i XIC -1210-3TK3i XIC -1212-1,5TK3i XIC -1212-3TK3i XIC -1512-1,5TK3i XIC -1512-3TK3i XIC -1515-1,5TK3i XIC -1515-3T
Capacity (kg)1500300015003000150030001500300015003000150030001500300015003000
Resolution (g)50010005001000500100050010005001000500100050010005001000
Weighing unitsg, kg, lb, oz
DisplayBacklit LCD
Acoustic warningYes
ConnectivityRS 232-C, Wireless (optional)
Transmission speed1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 baud
Bit number and parity8 Bits, no parity, 1 bit stop
Feeding230 V / 50 Hz (Euro) 11 V AC
Battery6V-5AH; Service time 25/60 hours depending on use
Work temperature+ 5ºC / + 35ºC
Sheet thickness5 mm
StructureAISI 304 stainless steelAISI 316 stainless steel
Load cells4 stainless cells
Sum boxHermetic with IP-68 protection, stainless steel AISI 304Hermetic with IP-68 protection, in AISI 316 stainless steel
Platform Dim (mm)1200 x 10001200 x 12001500 x 12001500 x 15001200 x 10001200 x 12001500 x 12001500 x 1500
Minimum height (mm)105 mm
Height (mm)115 mm
Net weight platform (kg)9110712915591107129155
Platform Dim (mm)1300 x 1100 x 3101300 x 1300 x 3101600 x 1300 x 3101600 x 1600 x 3101300 x 1100 x 3101300 x 1300 x 3101600 x 1300 x 3101600 x 1600 x 310
Platform Dim (mm)112128156188112128156188
OPTIONS
Without K3 indicator (platform only)
K3i indicator
K3i Printer indicator
SC2 indicator
K2 indicator
K2E indicator
K2N indicator
K2P indicator
K4i indicator
EC verification certificate from 601 kg to 1500 kg (*)
EC verification certificate from 1501 kg to 3000 kg (*)
ISOCAL certificate from 601 kg to 1500 kg
ISOCAL certificate from 1501 kg to 3000 kg
