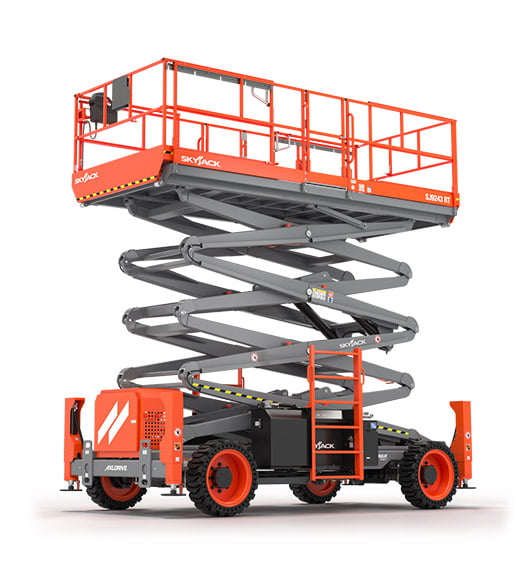

Diesel Scissor Lift SJ9243 RT
A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
Skyjack rough terrain scissor lifts boast impressive platform capacities and industry-leading gradeability (up to 50%). With crossover symmetrical four-wheel drive, these machines deliver maximum torque to all wheels for superior all terrain performance. A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs. We are the authorized dealer of Skyjack in Bangladesh. The recently redesigned Skyjack full size rough terrain scissor lifts boast some of the largest platforms and capacities on the market. These machines also feature axle-based four-wheel drive, providing them with outstanding all terrain capabilities.
| Work Height | 49’ (14.94 m) | |
| Raised Platform Height | 43’ (13.11 m) | |
| Lowered Platform Height | 75.5” (1.92 m) | |
| Overall Width | 92” (2.34 m) | |
| Overall Length | 176” (4.47 m) | |
| Stowed Height (Rails Up) | 119” (3.02 m) | |
| Stowed Height (Rails Down) | 84” (2.13 m) | |
| Platform Width (Inside Dimension) | 74” (1.88 m) | |
| Platform Length (Inside Dimension) | 171” (4.34 m) | |
| Extension Deck | 5’ (1.52 m) | |
| Ground Clearance | 10” (25 cm) | |
| Wheelbase | 118” (3.00 m) | |
| Weight | 15,000 lbs (6,804 kg) | |
| Gradeability | 40% | |
| Turning Radius (Inside) | 131” (3.33 m) | |
| Lift Time (With Rated Load) | 45 sec | |
| Lower Time (With Rated Load) | 40 sec | |
| Drive Speed (Stowed) | 3 mph (4.8 km/h) | |
| Drive Speed (Raised) | 0.6 mph (1 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity (Overall) | 2,000 lbs (907 kg) | |
| Maximum # of Persons | 6 | |
| Tire Type | Solid | |
| Tire Size | 31 x 10-20 | |
| Diesel Engine | Kubota 24.8 HP D1305 |
