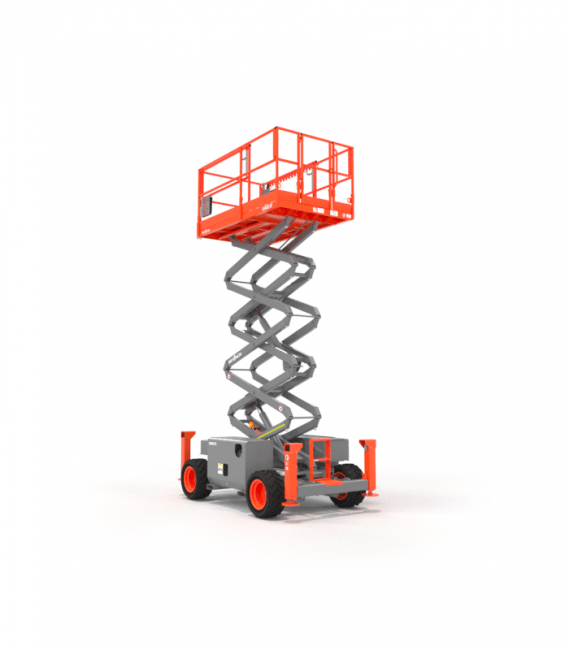

Diesel Scissor Lift SJ6826/32 RT
A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
Skyjack rough terrain scissor lifts boast impressive platform capacities and industry-leading gradeability (up to 50%). With crossover symmetrical four-wheel drive, these machines deliver maximum torque to all wheels for superior all terrain performance. A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs. We are the authorized dealer of Skyjack in Bangladesh.
| Work Height | 32’ (9.75 m) | 38’ (11.58 m) |
| Raised Platform Height | 26’ (7.92 m) | 32’ (9.75 m) |
| Lowered Platform Height | 48.5” (1.23 m) | 54” (1.37 m) |
| Overall Width | 69.5” (1.76 m) | 69.5” (1.76 m) |
| Overall Length | 107” (2.72 m) | 107” (2.72 m) |
| Stowed Height (Rails Up) | 93.5” (2.38 m) | 99” (2.51 m) |
| Stowed Height (Rails Down) | 63.5” (1.61 m) | 69” (1.75 m) |
| Platform Width (Inside Dimension) | 56” (1.42 m) | 56” (1.42 m) |
| Platform Length (Inside Dimension) | 96” (2.44 m) | 96” (2.44 m) |
| Extension Deck | 5’ (1.52 m) | 5’ (1.52 m) |
| Ground Clearance | 8” (0.20 m) | 8” (0.20 m) |
| Weight | 6,460 lbs (2,930 kg) | 7,590 lbs (3,443 kg) |
| Gradeability | 50% | 40% |
| Turning Radius (Inside) | 60” (1.52 m) | 60” (1.52 m) |
| Turning Radius (Outside) | 156” (3.96 m) | 156” (3.96 m) |
| Lift Time (With Rated Load) | 36 sec | 39 sec |
| Lower Time (With Rated Load) | 36 sec | 36 sec |
| Drive Speed (Stowed) | 3.8 mph (6.1 km/h) | 3.8 mph (6.1 km/h) |
| Drive Speed (Raised) | 0.4 mph (0.6 km/h) | 0.4 mph (0.6 km/h) |
| Maximum Drive Height | Full Height | Full Height |
| Capacity (Overall) | 1,250 lbs (567 kg) | 1,000 lbs (454 kg) |
| Distributed Capacity (Main Platform) | 950 lbs (431 kg) | 700 lbs (318 kg) |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) | 300 lbs (136 kg) |
| Local Floor Load (With Rated Load) | 190 psi (1,310 kPa) | 216 psi (1,500 kPa) |
| Overall Floor Load (With Rated Load) | 170 psf (830 kg/m2) | 200 psf (976 kg/m2) |
| Maximum # of Persons | 4 | 4 |
| Tire Type | Foam-Filled | Foam-Filled |
| Tire Size | 26 x 12 | 26 x 12 |
| Diesel Engine | 24.8 HP Kubota | 24.8 HP Kubota |
| Fuel Tank | 23 gal (87 L) | 23 gal (87 L) |
| Hydraulic Reservoir | 23 gal (87 L) | 23 gal (87 L) |
