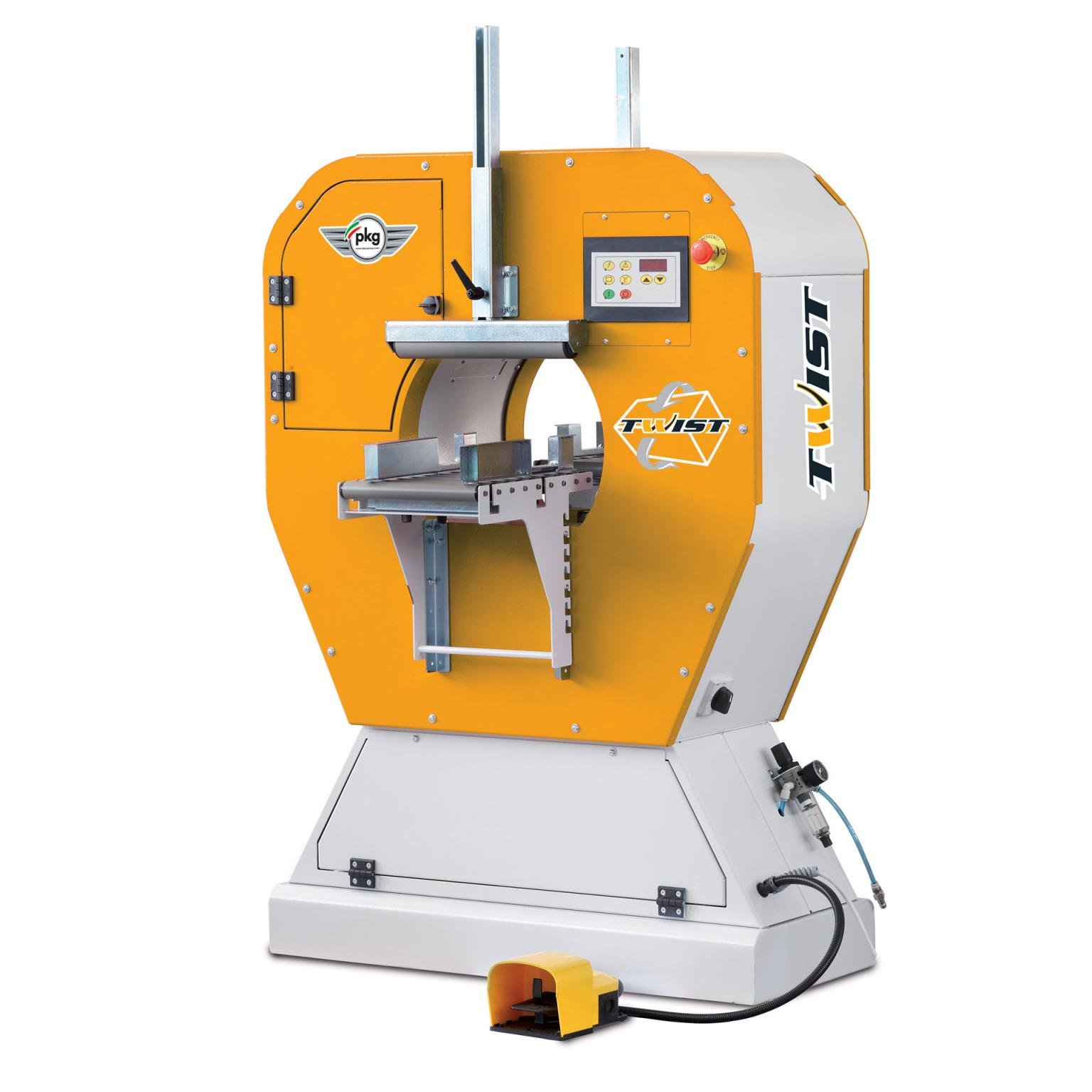

Twist Stretch Film Wrapping Machine
- Automatic cutting and clamping unit.
- In and Out feed conveyors by loose rollers in height adjustable.
- Mechanical top pressure.
- Start & Stop of wrapping cycle by feet paddle.
- Power supply: 230V – 1pH – 50Hz.
- Control panel with display.
- Minimum Nr. Of wraps: 3.
- Pneumatic power: 6 Bar
- Power transmission by flat belt.
- Bobbin internal diameter: 76 mm.
- Bobbin external diameter: 250 mm.
- Manual pressure adjustment.
Technical Features
TWIST 420
- Diameter ring: 420 mm
- Max RPM: 90 RPM
- Height bobine: 125 mm
TWIST 620
- Diameter Ring: 620 mm
- Max RPM: 70 RPM
- Height Bobine: 125 mm
TWIST 1000
- Diameter ring:1000 mm
- Max RPM: 50 RPM
- Height Bobine: 125 mm
TWIST 1400
- Diameter ring:1390 mm
- Max RPM: 30 RPM
- Height Bobine: 250 mm
