Multidirectional Order Picking Platform 1.5 Ton – 7.0 Ton
Our multidirectional order picking sideloader in the 1-man version (MU-OP) and the 2-man version (MU-SO) can be adapted to your individual requirements. The models are specially designed for picking profiles and pipes in narrow aisles. At the same time, these trucks can be used as conventional electric multidirectional sideloaders for the stacking of complete packs.

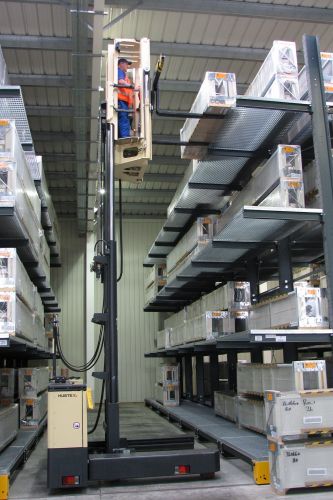

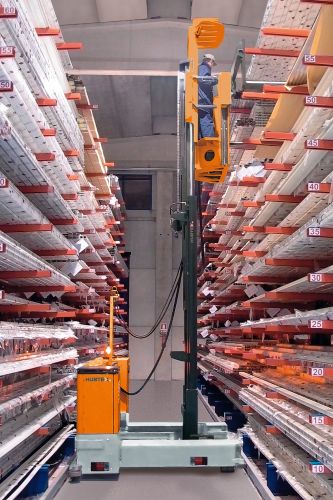

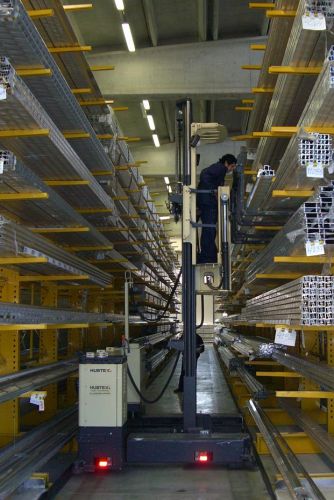

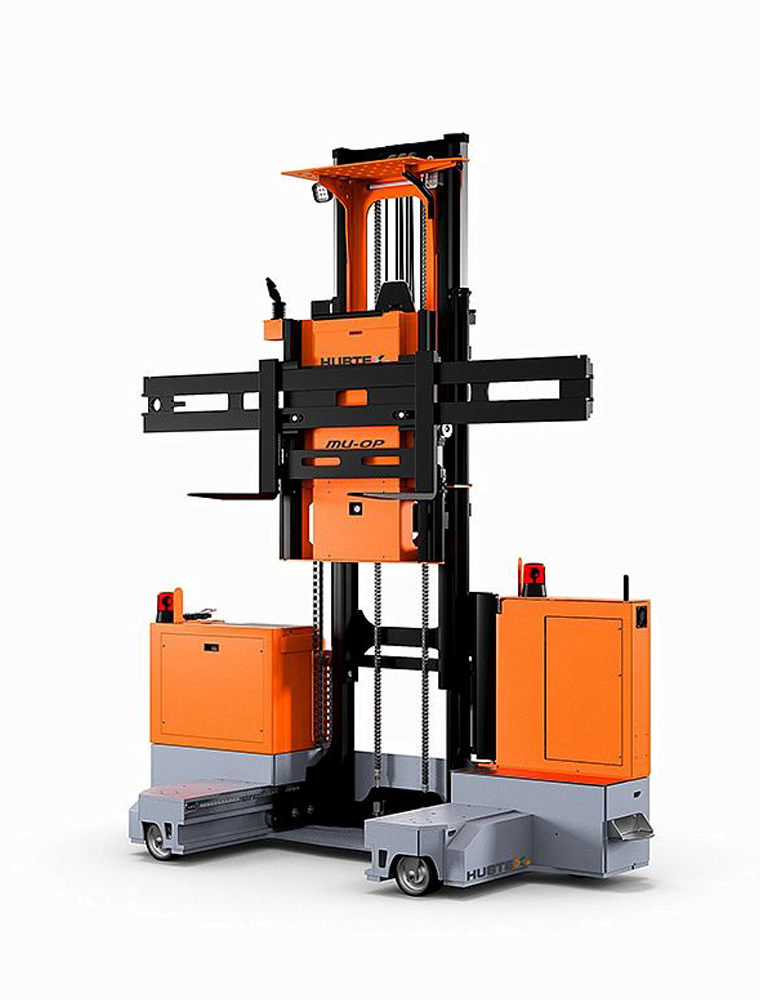

The MU-OP model is designed for one operator for the order picking of lightweight loads, such as aluminum, plastic or steel profiles. Its narrow rear frame, the optimized design of the lift mast and the central standup cab in front of the mast make the vehicle very narrow and therefore ideal for use in guided aisles. The central configuration of the standup cab in front of the lift mast gives the driver a clear view into the rack compartment, enabling him to pick light loads directly from the rack. Despite the slender design of the cab, all functions of the multidirectional sideloader are included, making the truck a fully-fledged electric multidirectional sideloader. This means that this vehicle can transport complete packs and bundles or provide manual assistance for order picking processes.
TECHNICAL DATA |
||||||||
| Series | Load capacity (t) | Load bed width NB (mm) | Lift height (mm) | Frame length L (mm) | Load bed opening RA (mm) | Tire equipment (optional) | Battery voltage (V) | Cab (optional) |
| MU-OP (2121) | 1.5 to 2.0 | 600 to 1600 | up to 8500 | 2950 | 1340 | PU | 48 V | SU |
| MU-OP (2140) | 3.0 to 3.5 | 600 to 1800 | up to 8500 | 3640 | 1340 | PU | 80 V | SU |
| MU-SO (2140) | 3.0 to 5.5 | 600 to 1800 | up to 10000 | 3640 | 1340 | PU | 80 V | 2 x SU |
| MU-SO (2131) | 5.5 to 7.0 | 600 to 1800 | up to 10000 | 3170 / 3500 | 1630 / 1960 | PU | 80 V | 2 x SU |
