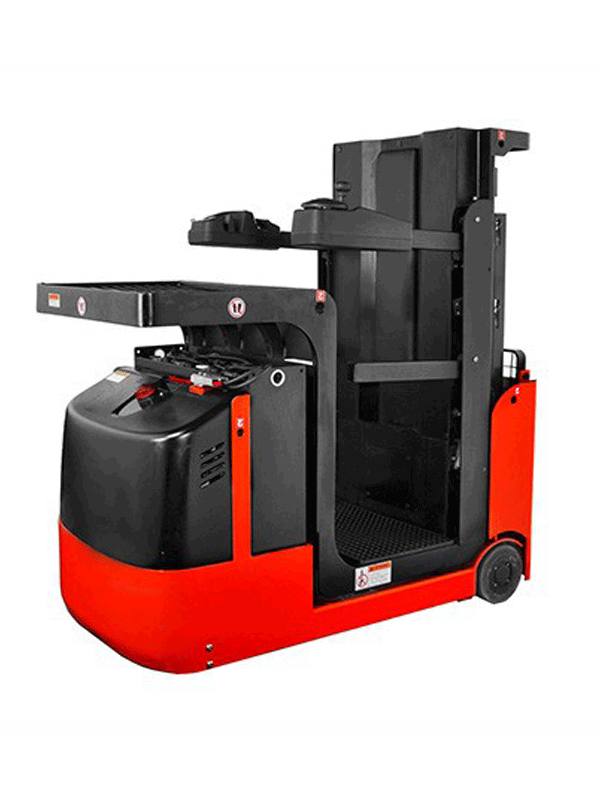

Hangcha Man Up Oder Picker 500kg

  •  AC controller manage travel, braking, lift/ lower functions and steering. LCD dashboard displays, hour meter, battery state of charge, travel speed and drive wheel directional indicator.
  • AC drive motor provides high torque throughout the entire drive range. The brush-less design of AC technology drastically reduces maintenance and extends battery range. Travel speed remains constant relative to throttle position regardless of the load on truck.
  • Programmable – travel speeds, plugging, and neutral braking are infinitely variable providing application specific performance.

SPEED

● 24-volt ZAPI ACO travel and EPS ACO power steering controller with dash board display

● TRAVEL

Variable from 0 mph to 3.4

● LIFT

Up to 42 fpm

REGENERATIVE BRAKES

● Regenerative braking is applied when the operator removes their hand from travel control or when travel speeds are reduced,
Electromagnetic parking brake is applied after the truck is stopped.

MAST

● Heavy duty I-beam design provides excellent stability at height. Steel mast channels and side mounted lift cylinders increases platform capacity.

CHASSIS

● Three point chassis design with along with 180º drive motor steering arc provides exceptional maneuverability. Power-head mounted stability casters add additional truck stability and operator confidence at working heights up to twenty feet.

OPERATOR COMPARTMENT

● Ergonomic fingertip control for travel, lift, and lower functions provide the operator with logical intuitive drive characteristics while traveling at elevation or lowered.

● Roomy operator compartment is designed for productivity. Large storage compart­ment allows storage of clip boards, pens , and miscellaneous fulfillment tools. Retractable compartment side-rails with audible alarm when raised.

STANDARD FEATURES

● Electronic Power Steering

● Hide Away Rear Work Tray

● Front and Rear Flashing Light

● Battery Compartment Rollers

OPTIONAL EQUIPMENT

● Anchor w/Tether and Harness

● High Speed Travel

● Tow Hitch

● Extended Warranty

● 224 Amp Hour Maintenance Free AGM battery pack with 110 VAC plug-in charger
