Glass Transporter System Multiway
The electric multi directional side loaders from HUBTEX convince with their energy-efficient, low-noise and powerful electric drive. The 360° all-round visibility provided by the electric multi directional side loader ensures safe handling of glass packs with load capacities of up to 46 tons. The sensitive control of all travel and lift mast movements enables the exact positioning of the vehicle and also helps to prevent glass breakage. The patented HUBTEX multi directional steering system also increases the warehouse capacity, as the electric multi directional side loaders can also be used in narrow aisles.
Features

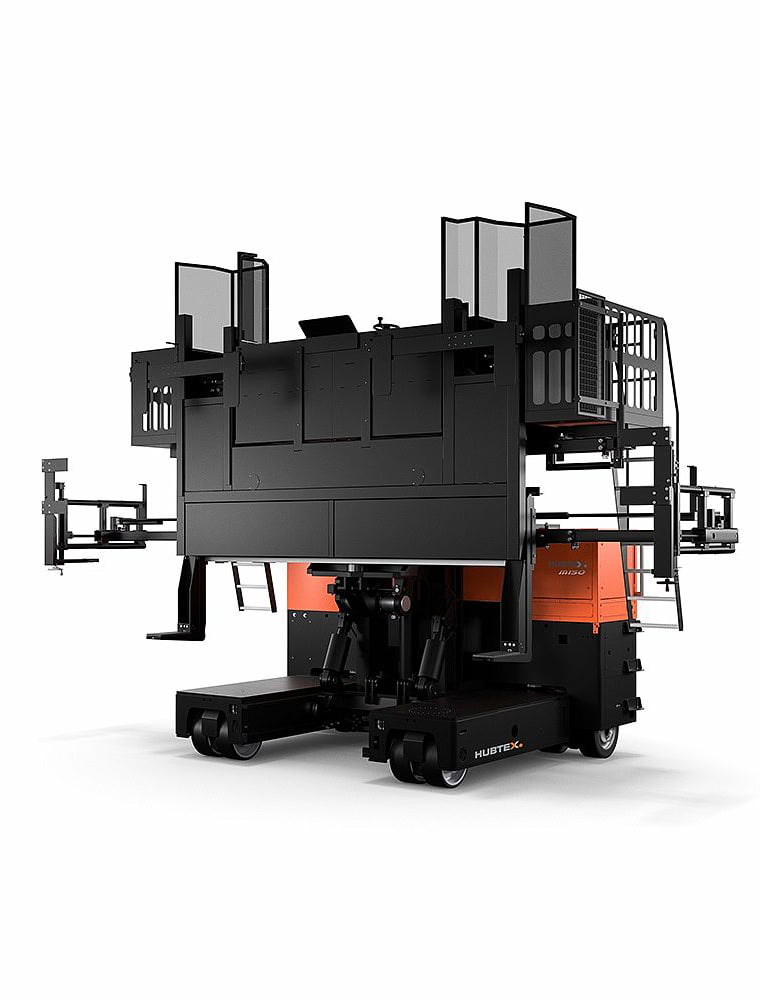

The HUBTEX M150 electric multidirectional sideloader transports individual glass sheets or complete glass packs weighing up to 20 tons. The M150 is used to handle jumbo size glass (PLF). At the customer’s request, the load handling attachment can be adapted to individual glass pack dimensions.
Remote Maintanance
A remote maintenance system is available for most HUBTEX electric multidirectional sideloaders. The IoT solution transfers important vehicle data, such as fault codes and battery charge status, to a cloud. In the event of a sideloader malfunction, HUBTEX engineers access the truck’s data directly and provide fast assistance. Users benefit from maximum machine availability and minimized production downtime. Retrofitting on used vehicles is also possible.
Specifications
| Type description | Type | Series | Load capacity (t) | Load handling | Tire equipment | Engine |
| Electric-Multi-Directional Sideloader |
M 30 | 2130 | up to 3 | Vacuum | PU/EL | Electric |
| M 40 | 2130 | up to 4 | ||||
| M 60 | 2130/2131/2132 | up to 6 | ||||
| M 70 | 2131/2132 | up to 7 | ||||
| M 75 | 2131/2132 | up to 7,5 | ||||
| M 85 | 2131/2132 | up to 8,5 | ||||
| M 90 | 2131/2132 | up to 9 | ||||
| M 150 | 2134 | up to 15 |
