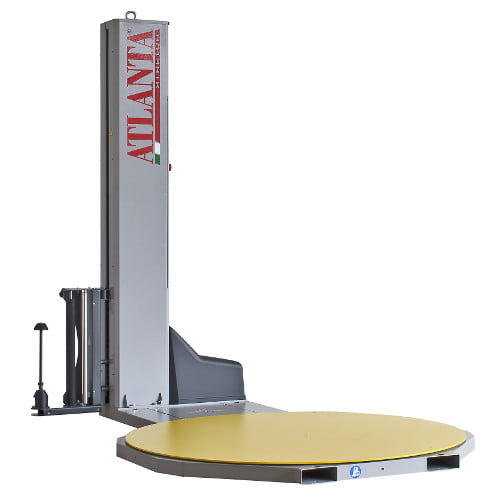

Eva Stretch Film Wrapping Machine
Machine is supplied with one basic program and has limited wrapping options. It comes with a mechanical brake type film carriage system.
Entry level turntable wrapper, suitable for wrapping a low number of pallets per day (<15 Pallets)
| Technical Characteristics | |
|---|---|
| Wrapping programs model EVA | Operating panel with one selectable program and parameters |
| Turntable diameter | 1500 mm |
| Optional diameters | 1650 mm |
| Turntable Maximum loading weight | 1200 Kg |
| Horseshoe machine Maximum loading weight | 1200 Kg |
| Adjustable turntable rotation speed facilitated by frequency changer | From 5 to 12 rpm * |
| Soft stop / start facilitated by frequency changer | STANDARD SUPPLY |
| Precise turntable phase stopping at cycle end | STANDARD SUPPLY |
| Carriage braking system | FM (FTL = Force to load) |
| Standard Wrapping height | 2200 mm |
| Photocell detection of load height | STANDARD SUPPLY |
| Adjustable Spool carriage speed facilitated by inverter | From 1,3 up to 5,4 m/min |
| Upwards Spool carriage speed | Independently settable |
| Downwards Spool carriage speed | Independently settable |
| Front and rear lifting with fork lift truck | STANDARD SUPPLY |
| Total installed power | 1.00 Kw |
| Standard voltage | 230 V – 50/60 Hz – 1 Ph |
| Electrical and motor protection system | IP 54 |
| Output capacity | 20 Pallets per Hour ** |
| * Depending on configuration | |
| ** Depending on film quality and working environment | Wrapping conditions and pallet dimensions have an influence on the Max output capacity |
| Stretch film specifications | |
|---|---|
| Recommended thickness for stretch-film | From 10 to 20 µm |
