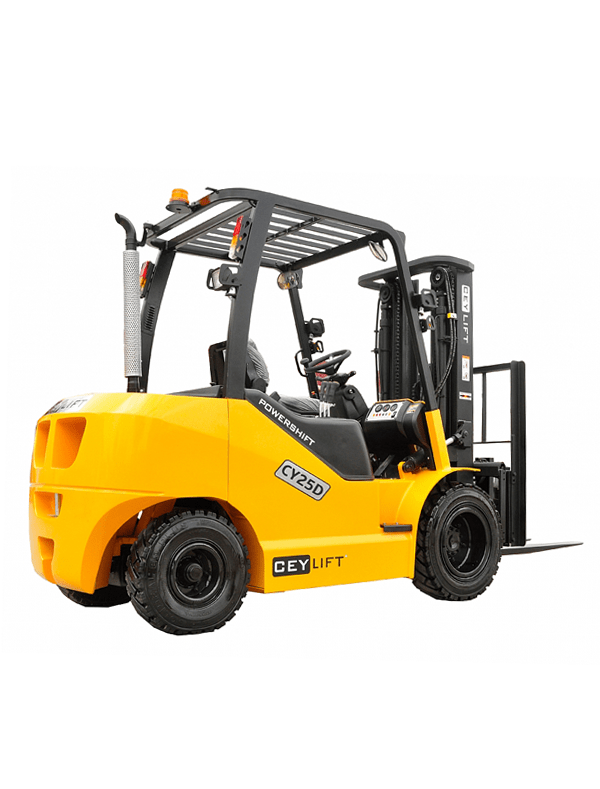

European Diesel Forklift 2.5 Ton
Ceylift Diesel Forklifts, whose power comes from domestic produced diesel engines, stands out with its superior performance and low emission emissions. In addition to its performance, the design offers comfortable and safe working capability for operators with its wide range of view.
-
Product type ‘ CY25D Drive type ‘ Diesel Operation type ‘ Sitting Load capacity ‘ 2500 Load center distance c mm 500 Load distance, center of drive axle to fork frame x mm 570 Wheelbase  y mm 1750
-
Service weight kg 4410 Axle load, front/rear (Loaded) kg 5795/915 Axle load, front/rear (Unloaded) kg 1590/2620
-
Tires  : Air(V), Rubber(P) ‘ P Tire size front ‘ 28x9x15-12 PR Tire size rear ‘ 6.50-10- 10PR Number of wheels front/rear ‘ 2/2 Track width front  mm 1060 Track width rear mm 985
-
Fork carriage tilt forward/backward Degrees 6/12 Lowered mast height h1 mm 2230 Free lift h2 mm 155 Lift height h3 mm 3300 Extended mast height h4 mm 4500 Overhead load guard height h5 mm 2180 Overall length L1 mm 4015 Length to the surface of forks L2 mm 2815 Overall width b1 mm 1280 Fork dimensions s/e/l mm 45/125/1200 Fork carriage ISO 2328, class /type A, B ‘ 2A Fork carriage width b2 mm 1070 Ground clearance, under mast m1 mm 135 Ground clearance, center of wheelbase m2 mm 195 Aisle width for pallets 1.000×1.200 cross ways Ast mm 4100 Turning radius Wa mm 2400
