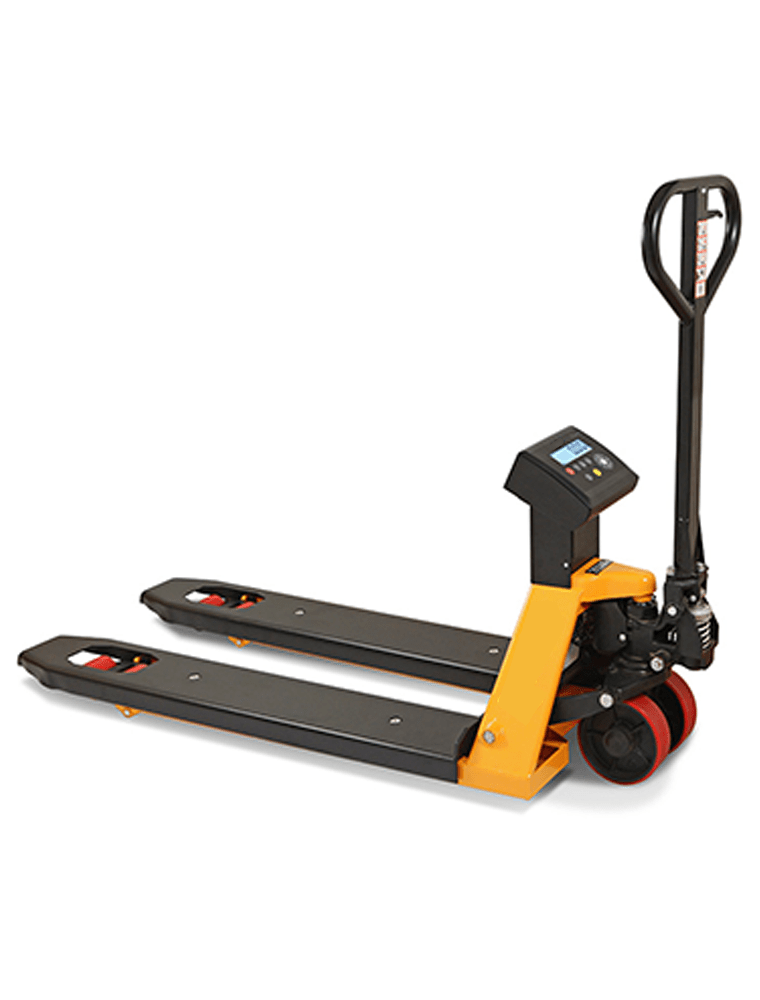

Electronic Weighing Hand Pallet Truck
- It integrates weighing and handling functions to improve work efficiency and is suitable for weighing and handling palletized packages.
- Accuracy range: ± 1kg (0-1000kg), ± 2kg (1000-2500kg).
- Built-in rechargeable battery and charger, with low battery reminder and automatic shutdown function.
- Suitable for weighing and counting goods in and out of the warehouse.
- The print interface is optional, and the weighing data can be printed and stored.
- It has the function of automatic calibration to ensure the weighing accuracy and the function of switching between gross weight and net weight.
The electronic scale truck that handles and weighs at the same time is particularly suitable for cargo handling and weighing in logistics operations such as railways, highways, commerce, industry and mining. The weighing platform is composed of a manual hydraulic conveying structure and a weighing element. The weighing platform is driven hydraulically to lift and lower, and the vehicle is driven manually. Special sensors and dedicated weighing instruments.
| model | CBY-CW |
| Rated load (kg) | 1500/2000/2500/3000 |
| Lifting height (mm) | 195 |
| Low drop height (mm) | 85 |
| Fork width (mm) | 550/685 |
| Fork length (mm) | 1150/1220 |
| Steering wheel (mm) | φ180×50 |
| Front wheel (mm) | φ80×70 |
| Self weight (kg) | 120-130 |
