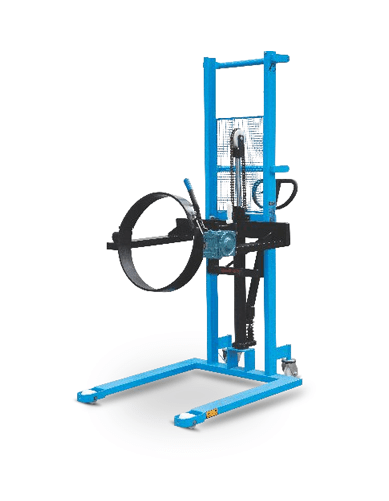

Drum Stacker / Handler
Perfect for handling two-hundred-gallon standard steel drums, the drum stacker/handler turntable is manual and has a carrying capacity of three hundred kilogram. The clamp is adjustable to the size of the drum and provides safe operation. The drum spill system is precise and simple to use.
Perfect for handling two-hundred-gallon standard steel drums, the drum stacker/handler turntable is manual and has a carrying capacity of three hundred kilogram. The clamp is adjustable to the size of the drum and provides safe operation. The drum spill system is precise and simple to use. By turning the crank positioned on the fork of the equipment, the drum rotates around the axis where the clamp is positioned, making it gently spill.
Fork lift is achieved by actuating the joystick that pumps hydraulic oil into the assembly and moves the internal lift piston. To lower the fork, simply trigger the trigger located on the tiller.
Product description:
Has a load capacity of 300 kg with a nylon wheel and optimal maneuverability. It operates in corridors up to 1.60 meters wide.
Main composition: carbon steel
Wheel Type: Simple
Wheel material: nylon
Operator Position: Standing, Walking
Warranty: 12 months
Loading Capacity: 300kg
Highest Elev: 1,990 mm
Fork Outer Width: –
Outer Width of Foot: 870 mm
Operating Corridor: 1.530 mm
